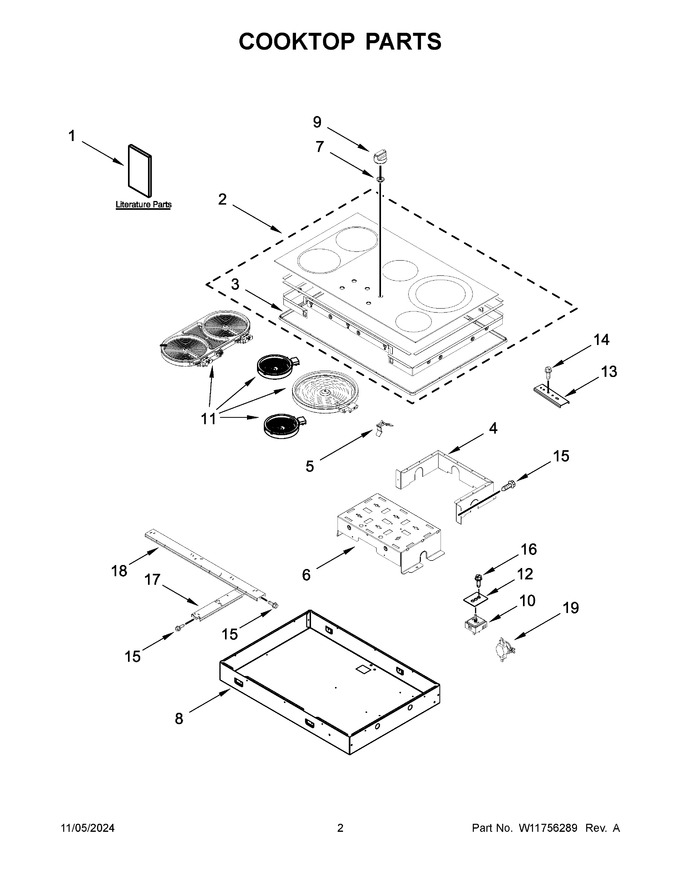

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11439185 | Installation Instructions |
|
- | |||||
| 2 | W11339340 | Cooktop (stainless) (Replaces: W11269300) |
|
Immediately | $ 655.71 | ||||
| 3 | ARI385331C9D38B9273C1BC8577B069F210 | Trim, Stainless (not Serviced) |
|
- | |||||
| 4 | W10311897 | Sheild, Outer |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W11215839 | Plate, Switch |
|
- | |||||
| 7 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 7.61 | ||||
| 8 | ARI55514D8BCAB29AE100450EFDED77D6CF | Box, Burner (not Serviced) |
|
- | |||||
| 9 | W10859808 | Knob, Control (stainless) |
|
$ 72.35 | |||||
| 10 | W10857622 | Switch, Infinite (left Front And Right Rear) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 11 | WPW10248259 | Element, Bridge (left Front & Left Rear) (Replaces: W10248259) |
|
Immediately | $ 336.74 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 43.89 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | 7101P42660 | Screw |
|
- | |||||
| 16 | 7101P30960 | Screw |
|
- | |||||
| 17 | W11110712 | Rail, Short |
|
- | |||||
| 18 | W11175343 | Rail, Horizontal |
|
- | |||||
| 19 | W10471482 | Switch, Tod High Limit |
|
Immediately | $ 48.11 | ||||
| 10A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 21.38 | ||||
| 10B | W10911303 | Switch, Infinite (center Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 10C | W10917724 | Switch, Infinite (right Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 11A | W11171119 | Element (1200w) (center Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 11B | WPW10342780 | Element (1300w) (right Front) (Replaces: W10342780) |
|
Immediately | $ 151.61 | ||||
| 11C | W10823727 | Element (3000w) (right Rear) (Replaces: W10711900) |
|
Immediately | $ 308.37 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11255747 | Use & Care Guide |
|
- | |||||
| 1C | W11238364 | Diagram, Wiring |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | 7101P42660 | Screw |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 140.81 | ||||
| NI | W11688724 | Insulation, Cooktop (knob) (Replaces: W11183280) |
|
- | |||||
| NI | W11110559 | Harness, Main |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.85 |
