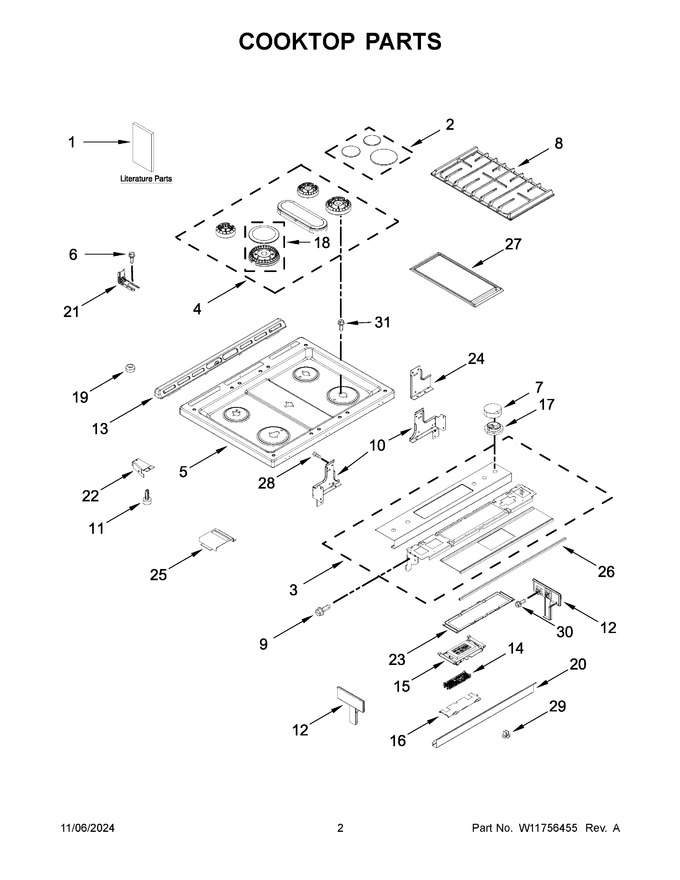

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11615559 | Dimension Guide |
|
- | |||||
| 2 | W11834855 | Burner Cap Kit (black (set Of 3)) (Replaces: W11367440) |
|
- | |||||
| 3 | W11647017 | Console (stainless) (Replaces: W11606821) |
|
$ 453.91 | |||||
| 4 | W11834876 | Burner Kit (set Of 5) (Replaces: W11367105) |
|
Immediately | $ 257.45 | ||||
| 5 | W11733868 | Cooktop (stainless) (Replaces: W11316217) |
|
- | |||||
| 6 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 7 | W11647016 | Knob (stainless) (Replaces: W11592981) |
|
$ 39.50 | |||||
| 8 | W11241056 | Grate Kit (black (set Of 2)) (Replaces: W11188538) |
|
$ 368.89 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 27.05 | |||||
| 11 | 8016P02260 | Glide, Main Top |
|
- | |||||
| 12 | W10557751 | Endcap (stainless (left)) |
|
$ 151.97 | |||||
| 13 | W10577782 | Trim, Vent (stainless) |
|
$ 129.21 | |||||
| 14 | W11802933 | Control, Mrc2 (Replaces: W11603772) |
|
Immediately | $ 364.59 | ||||
| 15 | W11120573 | Assembly, Display (Replaces: W10759324) |
|
Immediately | $ 460.91 | ||||
| 16 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 17 | W11752207 | Bezel (stainless) (Replaces: W11592976) |
|
$ 51.76 | |||||
| 18 | W11443594 | Burner Kit (includes Cap And Spreader) (left Front) (Replaces: W11366282) |
|
Immediately | $ 148.74 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 20 | W10565662 | Console, Lower Panel (stainless) |
|
$ 188.43 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 23 | W10557780 | Bracket , Control |
|
$ 33.01 | |||||
| 24 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 25 | W11158783 | Shield, Keypad |
|
- | |||||
| 26 | W11620671 | Gasket, Console And Cooktop (Replaces: W11512127) |
|
$ 22.61 | |||||
| 27 | W10432544 | Griddle |
|
Immediately | $ 59.79 | ||||
| 28 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 29 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.84 | ||||
| 30 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 31 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 10A | W11563527 | Bracket, Support (right) |
|
- | |||||
| 12A | W10557754 | Endcap (stainless (right)) |
|
$ 151.97 | |||||
| 1A | W11602522 | Owners Manual |
|
- | |||||
| 1B | W11602648 | Tech Sheet |
|
- | |||||
| 1C | W11676999 | Quick Start Guide |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| NI | W10580229 | Wire, Ground |
|
$ 34.40 | |||||
| NI | W11635422 | Harness, Bake And Warm Drawer |
|
$ 34.66 | |||||
| NI | W11635421 | Harness, Main |
|
$ 162.58 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11198972 | Harness, Bake And Broil (Replaces: W10754419) |
|
$ 32.26 | |||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 202.46 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 |
