SELECT A DIAGRAM

01 - Cover Sheet

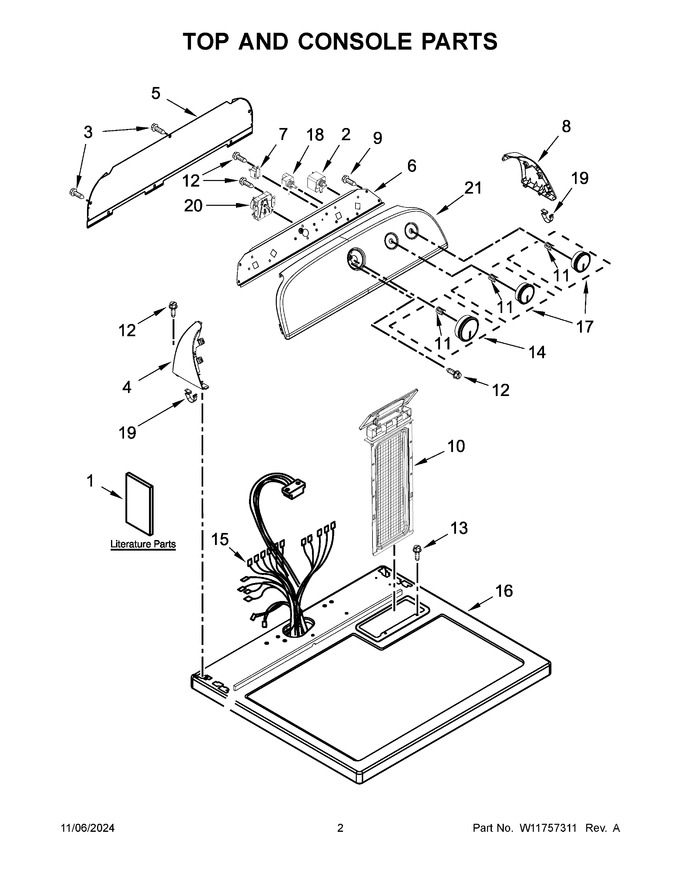

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11744326		Owners Manual		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 58.22
5	W10556829		Panel, Rear (console)				$ 257.24
6	W11759211		Control Bracket   (Replaces: W11743044)		Appelez-nous	-
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 57.91
9	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
10	W11778253		Lint Screen (white)   (Replaces: W11538107)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10770866)				$ 41.20
15	W11747574		Harness, Wiring   (Replaces: W11175558)		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W11176265		Assembly, Control Knob (white/metallic)   (Replaces: W10770858)				$ 47.16
18	W11050715		Switch, Temperature   (Replaces: W10661453)			Immediately	$ 10.43
19	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
20	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 170.80
21	W11743038		Assembly, Console (white)		Appelez-nous	-
1A	W11744338		Quick Start Guide		Appelez-nous	-
1B	W11745873		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
