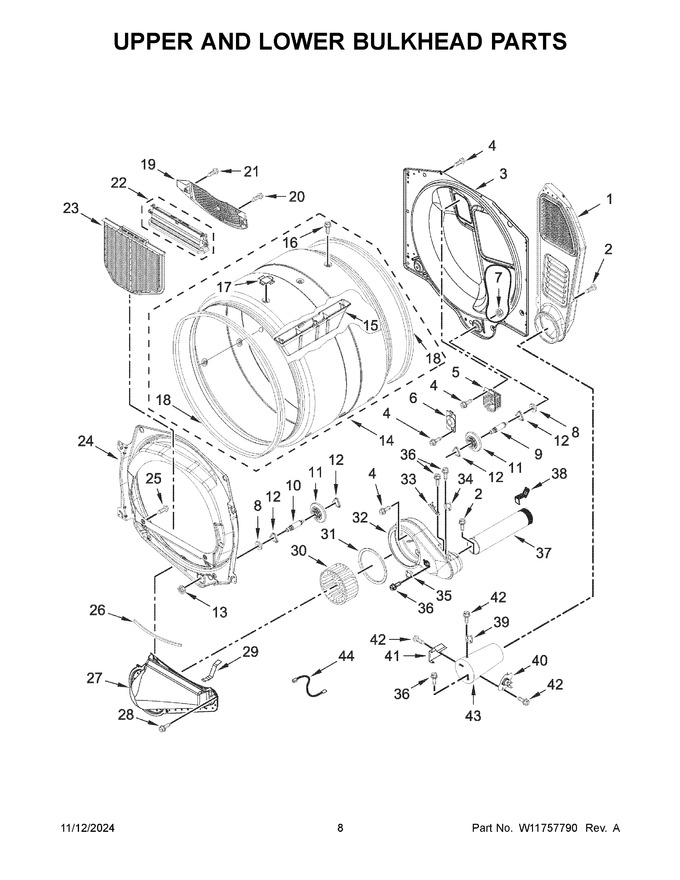

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11168650 | Assembly, Air Duct (Replaces: W10865336) |
|
$ 97.66 | |||||
| 2 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 3 | W11299301 | Bulkhead, Rear (Replaces: W11162455) |
|
$ 234.13 | |||||
| 4 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 5 | 8578825 | Bracket, Drum Light |
|
$ 19.73 | |||||
| 6 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 7 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 8 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 9 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 10 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 11 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 12 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 13 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 11.49 | |||||
| 14 | W10545923 | Assembly, Drum |
|
$ 412.74 | |||||
| 15 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 86.01 | ||||
| 16 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 17 | 8066086 | Plug, Drum Hole |
|
$ 10.16 | |||||
| 18 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 63.74 | ||||
| 19 | W11086603 | Grill, Outlet (Replaces: W10692558) |
|
Immediately | $ 33.21 | ||||
| 20 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 21 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.45 | ||||
| 22 | W11129408 | Assembly, Outlet Housing (Replaces: W10685669) |
|
$ 51.20 | |||||
| 23 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 74.66 | |||||
| 24 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 196.59 | |||||
| 25 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 26 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 27 | WPW10128606 | Assembly, Lint Duct (Replaces: 8066168) |
|
$ 195.73 | |||||
| 28 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 29 | WP8066208 | Clip, Spring (Replaces: W10345456) |
|
$ 7.95 | |||||
| 30 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 147.43 | ||||
| 31 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 32 | W11744012 | Housing, Blower (Replaces: W10135254) |
|
$ 109.58 | |||||
| 33 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 34 | WPW10131836 | Thermostat (Replaces: W10131836) |
|
$ 149.84 | |||||
| 35 | WPW10193019 | Thermostat, Electronic (155f) (Replaces: W10193019) |
|
$ 126.40 | |||||
| 36 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 37 | 279936 | Pipe, Exhaust (Replaces: 8066224) |
|
$ 138.76 | |||||
| 38 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 7.35 | |||||
| 39 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 128.29 | ||||
| 40 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 65.26 | ||||
| 41 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 42 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 43 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 166.76 | |||||
| 44 | WP3401707 | Jumper, Wire (Replaces: 3401707) |
|
$ 77.93 |
