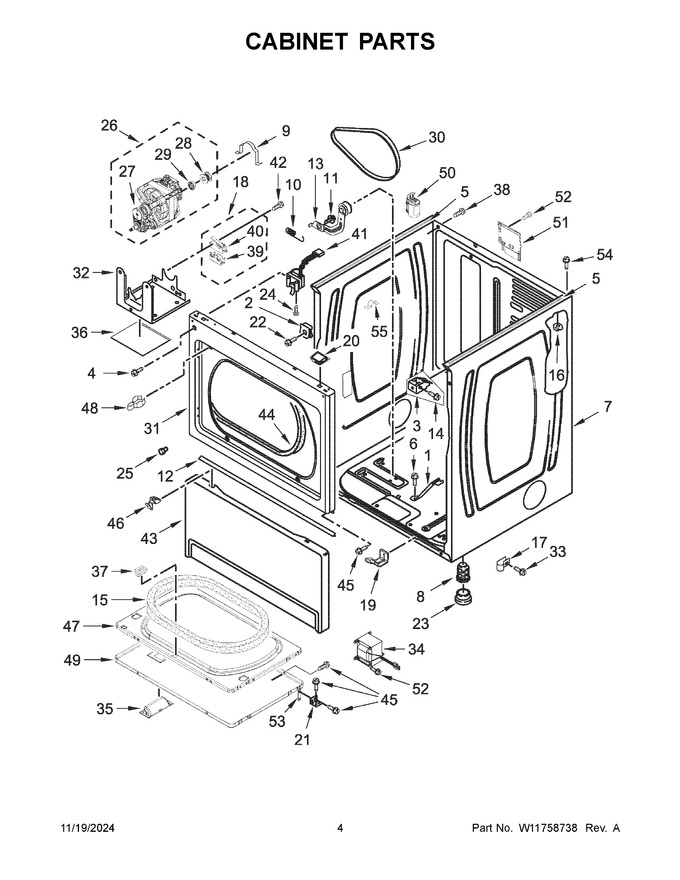

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10181903		Bracket, Burner		Appelez-nous	-
2	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 7.29
3	3391846		Clip, Front Panel				$ 19.99
4	W10879744		Screw		Appelez-nous	-
5	W10181918		Seal, Plate Cover		Appelez-nous	-
6	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
7	W11417441		Cabinet (white)   (Replaces: W11161907)				$ 396.15
8	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 22.22
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	W10576519		Seal, Deflector		Appelez-nous	-
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 85.11
14	681615		Screw   (Replaces: 3391915)				$ 13.11
15	WP3390735		Seal, Door   (Replaces: 3390735)				$ 123.42
16	WP90406		Nut, Cage   (Replaces: 90406)				$ 8.18
17	3387561		Clamp, Pipe		Appelez-nous	-
18	W11236387		Assembly, Switch   (Replaces: W11159572)		Appelez-nous	-
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.33
20	WP345670		Lock Top   (Replaces: 345670)			Immediately	$ 7.28
21	WPW10279703		Hinge & Pin Assembly (silver)   (Replaces: W10279703)				$ 68.25
22	WP3395530		Screw   (Replaces: 697773)				$ 7.71
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.39
24	WP3395530		Screw   (Replaces: 697773)				$ 7.71
25	693152		Bumper				$ 10.36
26	W11215537		Assembly, Motor   (Replaces: W10918087)				$ 504.43
27	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 33.29
28	W10167237		Pulley		Appelez-nous	-
29	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 40.19
31	W10234293		Panel, Front		Appelez-nous	-
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 121.16
33	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
34	W10851673		Transformer   (Replaces: W10753690)				$ 375.72
35	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 71.59
36	W11113654		Pad, Sound   (Replaces: W10836094)				$ 20.96
37	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
39	W11247665		Bracket, Switch   (Replaces: W11159569)				$ 24.95
40	W10410873		Assembly, Switch Actuator		Appelez-nous	-
41	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 59.19
42	3400934		Assembly, Screw And Insulator		Appelez-nous	-
43	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 225.23
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 29.24
45	WP488627		Screw   (Replaces: 342055)				$ 7.30
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.99
47	280083		Door, Rear   (Replaces: W10323061)				$ 271.23
48	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
49	W11663440		Door, Front   (Replaces: W10322546)				$ 245.11
50	W11671470		Filter, Rfi Line   (Replaces: W11541973)		Appelez-nous	-
51	W11417441		Cover, Terminal   (Replaces: W11378153)				$ 396.15
52	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
53	W10191265		Plug-hinge Screw (white)				$ 41.84
54	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
55	WP98997		Clip   (Replaces: 98997)				$ 10.48
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
NI	W10470674		Dryer Exhaust Kit Not Included, Kit, 4-way Venting			Immediately	$ 80.59
