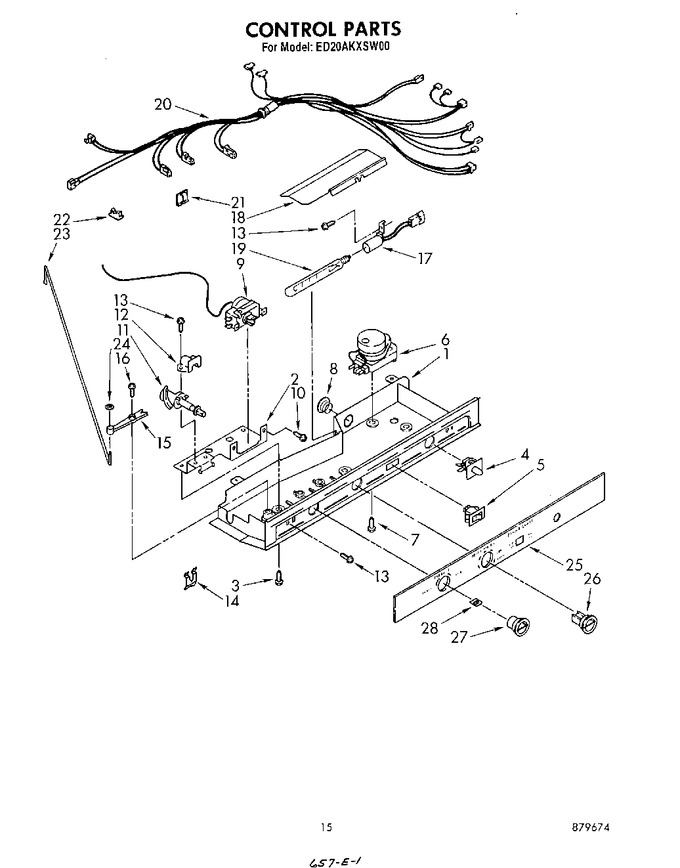

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1108446		Control Box		Appelez-nous	-
2	1110629		Mounting Bracket		Appelez-nous	-
3	489190		Screw (2)		Appelez-nous	-
4	WP2149705		Switch, Light   (Replaces: 1105461)			Immediately	$ 41.09
5	1106625		Switch, Lighted Power Miser		Appelez-nous	-
6	W10822278		Defrost Timer (10 Hr.)   (Replaces: 945486)			Immediately	$ 31.00
7	489392		Screw (2)   (Replaces: 489192)				$ 12.62
8	940014		Hole Plug				$ 18.33
9	WP2198202		Thermostat Assembly   (Replaces: 1115242)			Immediately	$ 82.75
10	WP965173		Screw (3)   (Replaces: 487358)			Immediately	$ 10.68
11	1110566		Cam Assembly		Appelez-nous	-
12	1110560		Bearing Body				$ 10.17
13	W11624204		Screw (2) 8 X 1/2   (Replaces: 486194)				$ 13.25
14	938439		Retainer, Damper		Appelez-nous	-
15	1110559		Pivot Arm				$ 8.35
16	627068		Screw				$ 11.46
17	1110690		Light Socket		Appelez-nous	-
18	1110689		Heat Shield		Appelez-nous	-
19	WP548049		Light Bulb   (Replaces: 548049)				$ 81.60
20	1108432		Control Box Harness		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.33
22	1115375		Clip, Wiring				$ 11.15
23	1110556		Connecting Rod		Appelez-nous	-
24	489187		Fastener, Push-on		Appelez-nous	-
25	1110707		Escutcheon, Control		Appelez-nous	-
26	1110554		Knob, Thermostat		Appelez-nous	-
27	1110562		Knob, Air Control		Appelez-nous	-
28	799908		Silicone (spray)		Appelez-nous	-
28	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
28	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
28	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
28	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
28	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
28	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
28	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
28	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
28	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
28	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
28	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
28	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
28	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
28	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
28	833938		Kit, Terminal Connector				$ 7.62
28	515393		Transformer (115-230 Volt)		Appelez-nous	-
28	837444		Knob, Retainer		Appelez-nous	-
28	350942		Primer White (13 Oz. Spray Can)				$ 84.73
28	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
28	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
28	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
28	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
28	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
28	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
28	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
28	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
28	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
28	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
28	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
28	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
28	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
28	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
28	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
28	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
28	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
28	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
28	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 218.83
28	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	LIT1108455		Service & Wiring Sheet		Appelez-nous	-
	LIT879674		Parts List		Appelez-nous	-
	LIT1115388		Energy Label		Appelez-nous	-
	LIT1114039		Care & Use Guide		Appelez-nous	-
