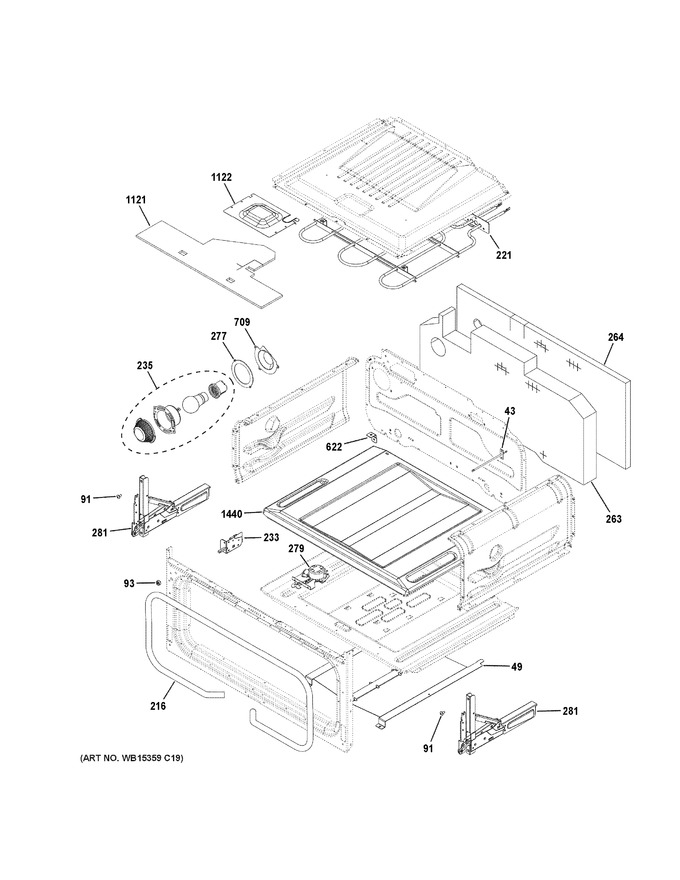

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 43 | WB24X5340 | Sensor Asm. |
|
- | |||||
| 49 | WB34X28907 | Bake Deflector Uc |
|
- | |||||
| 91 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 | ||||
| 93 | WB02X28737 | Frame Front Bumper |
|
- | |||||
| 216 | WB35X29666 | Gasket Oven |
|
- | |||||
| 221 | WB44X28976 | Broil Element |
|
- | |||||
| 233 | WB24X27550 | Plunger Switch |
|
- | |||||
| 235 | WG02F01227 | Oven Lamp Holder Asm (Replaces: WB08T10002) |
|
$ 57.24 | |||||
| 263 | WB35X28788 | Insulation Oven Back |
|
- | |||||
| 264 | WB35X28790 | Insulation Oven Back |
|
- | |||||
| 277 | WS01L07527 | Gasket Oven Light (Replaces: WB32K10044) |
|
$ 3.57 | |||||
| 279 | WB10X28794 | Latch Automatic |
|
- | |||||
| 281 | WB10X28782 | Hinge Asm |
|
- | |||||
| 622 | WB2K3 | Angle Support |
|
- | |||||
| 709 | WB08K10018 | Cover Lamp |
|
- | |||||
| 1121 | WB35X28986 | Insulation Latch |
|
- | |||||
| 1122 | WB34X21710 | Cover Latch |
|
- | |||||
| 1440 | WB63X24934 | Oven Bottom Uc |
|
- |
