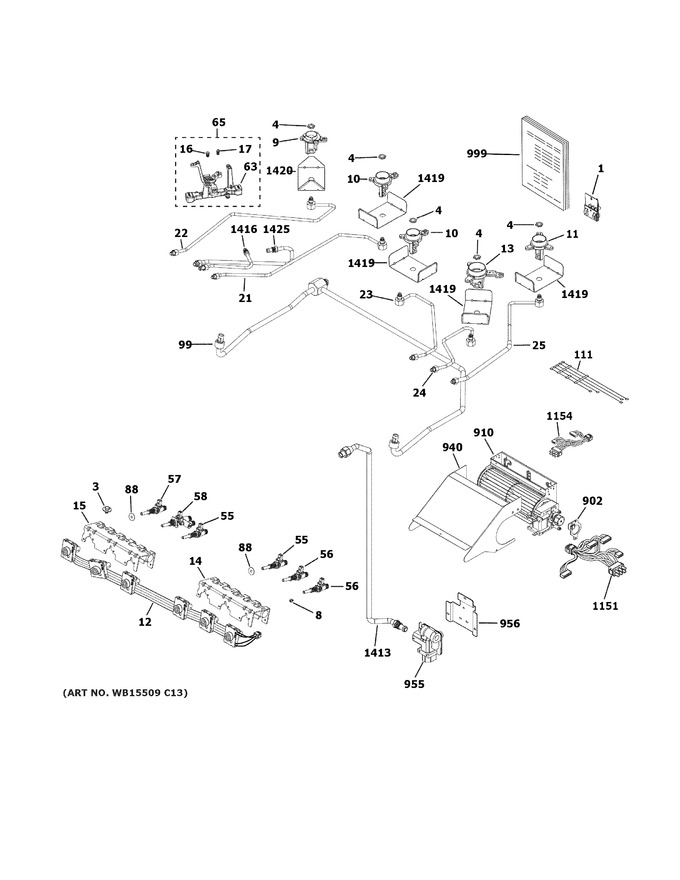

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB28X29254 | Kit Ng High Altitude Asm |
|
- | |||||
| 1 | 295D2744P006 | Label Wire Diagram |
|
- | |||||
| 1 | WB28X28137 | Kit Lp Conversion Asm |
|
- | |||||
| 1 | WB28X29255 | Kit Lp High Altitude Asm |
|
- | |||||
| 3 | WB01K10067 | Scr 8 Hd 1/4 - 20 |
|
- | |||||
| 4 | WS01A01130 | Economic Nut (Replaces: WB01K10037) |
|
Immediately | $ 14.65 | ||||
| 8 | WS01A01212 | Screw 8-32 (Replaces: WB01K10002) |
|
$ 79.32 | |||||
| 9 | WB02X24728 | Injet, Small V2 |
|
- | |||||
| 10 | WB02X24727 | Injet, Medium V2 |
|
- | |||||
| 11 | WB02X24726 | Injet, Large V2 |
|
- | |||||
| 12 | WB18X28761 | Harness Switches |
|
- | |||||
| 13 | WB02X24725 | Injet, Xl V2 |
|
- | |||||
| 14 | WB28X28202 | Manifold Pipe Asm |
|
- | |||||
| 15 | WB28X28203 | Manifold Pipe Asm |
|
- | |||||
| 16 | WB28X28843 | Orifice Spud Ng |
|
- | |||||
| 17 | WB28X29600 | Orifice Spud |
|
- | |||||
| 21 | WB16X28685 | Cr Orifice Holder |
|
- | |||||
| 22 | WB28X28141 | Lr Orifice Holder |
|
- | |||||
| 23 | WB13X28673 | Cf Orifice Holder |
|
- | |||||
| 24 | WB28X28846 | Rf Orifice Holder |
|
- | |||||
| 25 | WB28X28148 | Rr Orifice Holder |
|
- | |||||
| 55 | WS01F06059 | Valve Burner 270 (Replaces: WB21X20470) |
|
Immediately | $ 20.28 | ||||
| 56 | WB21X20612 | Valve Burner 270 |
|
- | |||||
| 57 | WB21X25979 | Valve Burner 270 |
|
- | |||||
| 58 | WB21X28821 | Valve Burner 3r 310 |
|
- | |||||
| 63 | WB16X28863 | Injet Mrhob |
|
- | |||||
| 65 | WB16X28867 | Inject Burner Mrhob Asm |
|
- | |||||
| 88 | WB02X28680 | Cover Valve |
|
- | |||||
| 99 | WB28X28157 | Tube Manifold Supply |
|
- | |||||
| 111 | WB18X28727 | Electrodes & Harness H. V. |
|
- | |||||
| 902 | WB27X28659 | Board Sensor |
|
- | |||||
| 910 | WB26X32571 | Blower Tangential |
|
- | |||||
| 940 | WB34X28735 | Fan Support |
|
- | |||||
| 955 | WS01F02341 | Pressure Regulator (Replaces: WB19K10018) |
|
Immediately | $ 125.90 | ||||
| 956 | WB02X22890 | Bracket Regulator |
|
- | |||||
| 999 | 31-11076 | Pm Install Instructions |
|
- | |||||
| 999 | 49-2001042 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-17269 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 999 | 31-11053 | Pm Install Instructions |
|
- | |||||
| 999 | 31-10781 | Pm Install Instructions |
|
- | |||||
| 999 | 49-2000201 | Pm Owners Manual |
|
- | |||||
| 999 | 31-11013 | Pm Wi Fi Instructions |
|
- | |||||
| 1151 | WB18X28900 | Harness Main |
|
- | |||||
| 1154 | WB18X31604 | Harness Blower |
|
- | |||||
| 1413 | WB28X28151 | Tube Burner Box Supply |
|
- | |||||
| 1416 | WB28X28161 | Tube Simmer Dual Valve |
|
- | |||||
| 1419 | WB02X28653 | Air Deviator |
|
- | |||||
| 1420 | WB02X28652 | Air Deviator |
|
- | |||||
| 1425 | WB28X28155 | Tube Main Dual Valve |
|
- |
