SELECT A DIAGRAM

Body Parts


Control Panel & Cooktop


Convection Fan


Door & Drawer Parts


Gas & Burner Parts

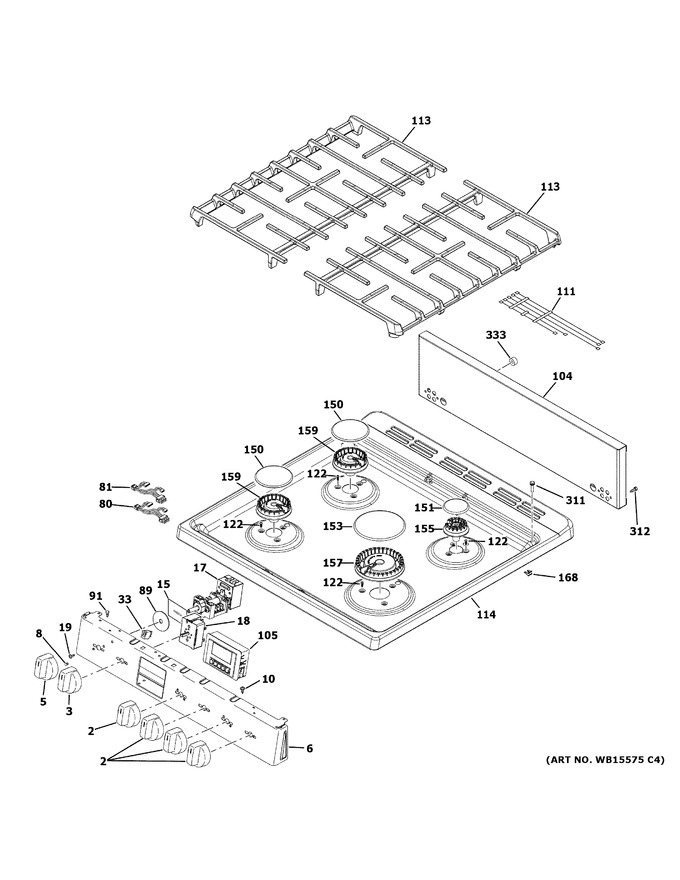

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WB03X31122		Knob Asm		Appelez-nous	-
3	WB03X31070		Oven Mode Selector Knob		Appelez-nous	-
5	WB03X31121		Thermostat Knob Asm		Appelez-nous	-
6	WB36X31109		Manifold Panel		Appelez-nous	-
8	WB25X29379		Lens		Appelez-nous	-
10	WB01T10009		Screw 10-16 Shldr Type A		Appelez-nous	-
15	WB2K6		Cover Thermostat		Appelez-nous	-
17	WB24X31123		Thermostat Electric		Appelez-nous	-
18	WB24X31083		Oven Mode Selector Switch		Appelez-nous	-
19	WB1K8		Screw Thermostat		Appelez-nous	-
33	WS01F01702		Light Indicator Pilot   (Replaces: WB25K10010)				$ 17.15
80	WB18X31075		Harness Conmutator		Appelez-nous	-
81	WB18X31073		Harness Thermostat		Appelez-nous	-
89	WB02X31933		Seal Valve		Appelez-nous	-
91	WS01A00445		Screw Ground   (Replaces: WB1X1261)				$ 12.51
104	WB36X31079		Backguard Range		Appelez-nous	-
105	WB24X31108		Timer-clock & Overlay Asm		Appelez-nous	-
111	WB18X30975		Electrode Top & Harness Hv		Appelez-nous	-
113	WB31X30957		Grate Top		Appelez-nous	-
114	WB62X31120		Range Top & Insulation Asm		Appelez-nous	-
122	WB01X24735		Ckt Screw		Appelez-nous	-
150	WS01F02536		Asm Burner Cap (9500)   (Replaces: WB29K10023)			Immediately	$ 15.72
151	WB16X28654		Asm. Cap, Burner Small V2				$ 28.45
153	WS01F02544		Cap Burner Xl   (Replaces: WB28K10222)			Immediately	$ 16.59
155	WB16X24721		Burner, Small V2		Appelez-nous	-
157	WB16X24722		Burner, Xl V2		Appelez-nous	-
159	WB16X24724		Burner, Medium V2		Appelez-nous	-
168	WB02X24976		Clip, Igniter V2		Appelez-nous	-
311	WB02X24790		Bumper		Appelez-nous	-
312	WS01A01151		Screw   (Replaces: WB01K10091)			Immediately	$ 11.44
333	WB01K10020		Spacer-handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
