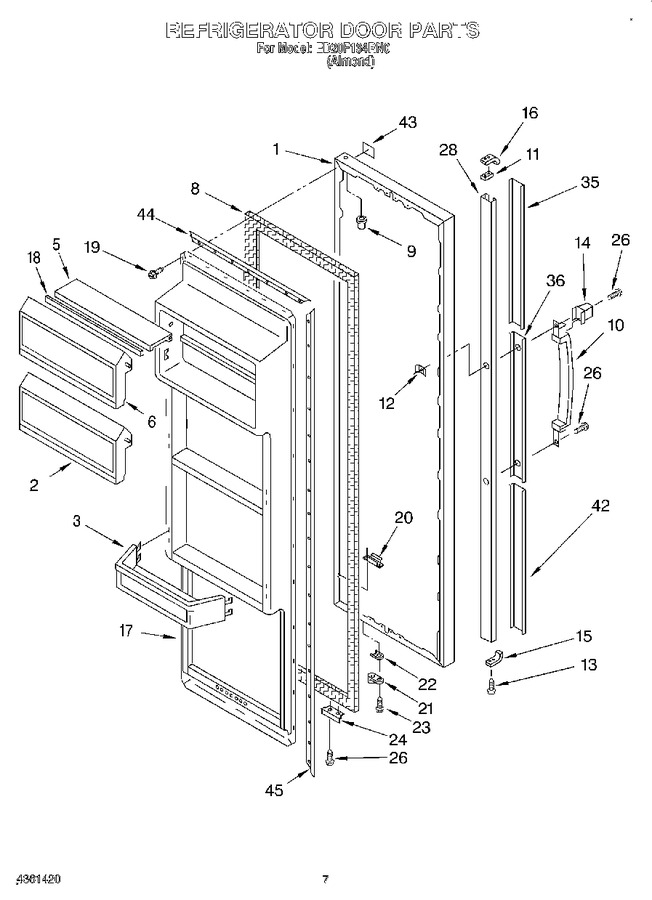

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2154241		Refrigerator Door		Appelez-nous	-
2	2161280		Door, Compartment		Appelez-nous	-
3	2161274		Trim, Shelf (3)		Appelez-nous	-
5	1116707		Shelf, Compartment		Appelez-nous	-
6	2164022		Door, Compartment		Appelez-nous	-
8	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 242.33
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	2161269		Handle		Appelez-nous	-
11	2160458		Shim, Handle (2)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
14	2156607		End Cap, Handle		Appelez-nous	-
15	2151819		End Cap (bottom)		Appelez-nous	-
16	2160457		End Cap (top)		Appelez-nous	-
17	2161221		Panel, Interior Door		Appelez-nous	-
18	2161276		Trim, Interior Door Shelf		Appelez-nous	-
19	WP489069		Screw, 7 X 1/2 (30)   (Replaces: 489101)			Immediately	$ 7.56
20	988402		Tap Plate		Appelez-nous	-
21	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 26.77
22	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.16
23	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.56
24	1115906		Bracket, Door Stop		Appelez-nous	-
26	488549		Screw, 8 X 5/8		Appelez-nous	-
28	2154317		Track, Roll		Appelez-nous	-
35	2161271		Trim, Top		Appelez-nous	-
36	2161272		Trim, Middle		Appelez-nous	-
42	2161273		Trim, Bottom		Appelez-nous	-
43	2161281		Nameplate		Appelez-nous	-
44	1118301		Retainer, Gasket		Appelez-nous	-
45	1117766		Retainer, Gasket				$ 36.55
