New Model Search:

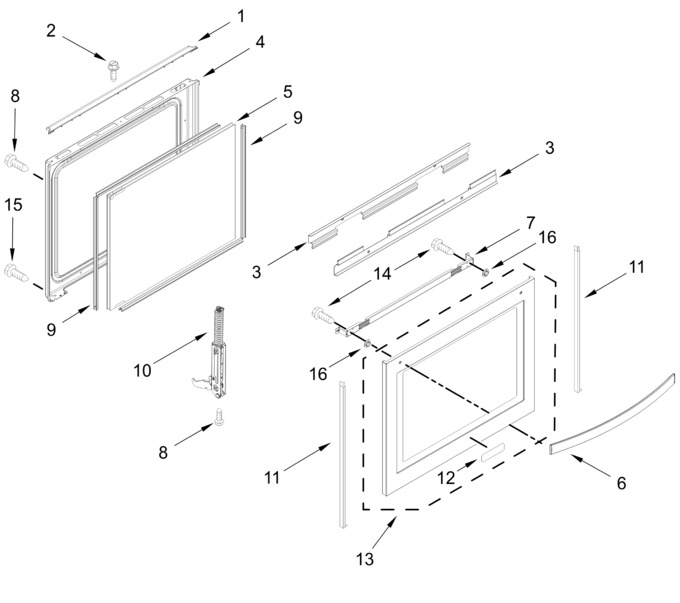

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11182113 | Trim, Vent (black) (Replaces: W10887939) |
|
$ 122.13 | |||||
| 2 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 9.11 | |||||
| 3 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 154.05 | |||||
| 6 | W11107877 | Handle (stainless) (Replaces: W10918786) |
|
Immediately | $ 238.28 | ||||
| 7 | W10541911 | Bracket, Glass Upper Handle |
|
$ 35.93 | |||||
| 8 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 9 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 27.94 | ||||
| 10 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 11 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 12 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 13 | W11106273 | Glass, Outer (stainless) (Replaces: W10864214) |
|
$ 465.96 | |||||
| 14 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.90 | ||||
| 15 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 16 | W11676355 | Washer, Door (Replaces: W10319024) |
|
$ 13.33 |
