SELECT A DIAGRAM
Cooktop Parts
Interior Parts
New Model Search:

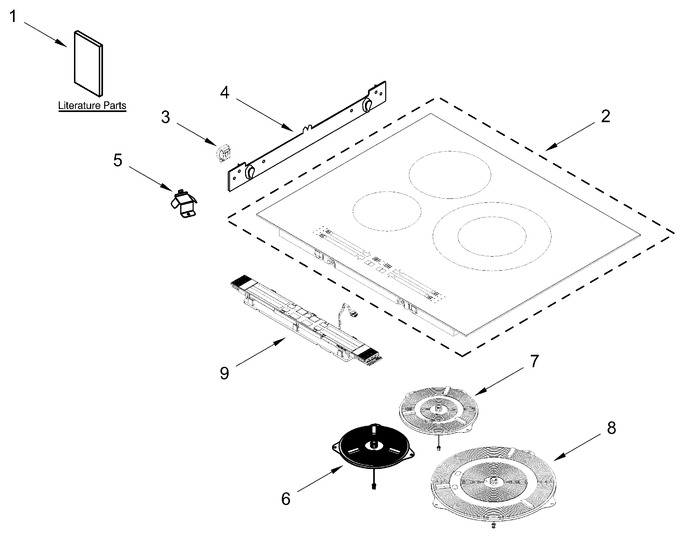

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11638077 | Glass Cooktop Assembly (Replaces: W11610438) |
|
Immediately | $ 1,091.53 | ||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 36.23 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 77.03 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11560534 | Element (6 Inch) (Replaces: W11429950) |
|
Immediately | $ 178.66 | ||||
| 7 | W11560536 | Element (7 Inch) (Replaces: W11429951) |
|
Immediately | $ 180.08 | ||||
| 8 | W11560537 | Element (8.75 Inch) (Replaces: W11429956) |
|
Immediately | $ 203.36 | ||||
| 9 | W11591732 | Hmi Board (Replaces: W11524570) |
|
$ 551.72 | |||||
| W11362924 | Owner's Manual |
|
- | ||||||
| ARI5176DC7BCD528CAA83FE8E7749EF8817 | (right Center) |
|
- | ||||||
| W11362961 | Tech Sheet |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11362914 | Installation Instructions |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11245478 | Instructions, Undercounter Installation |
|
- |
