Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

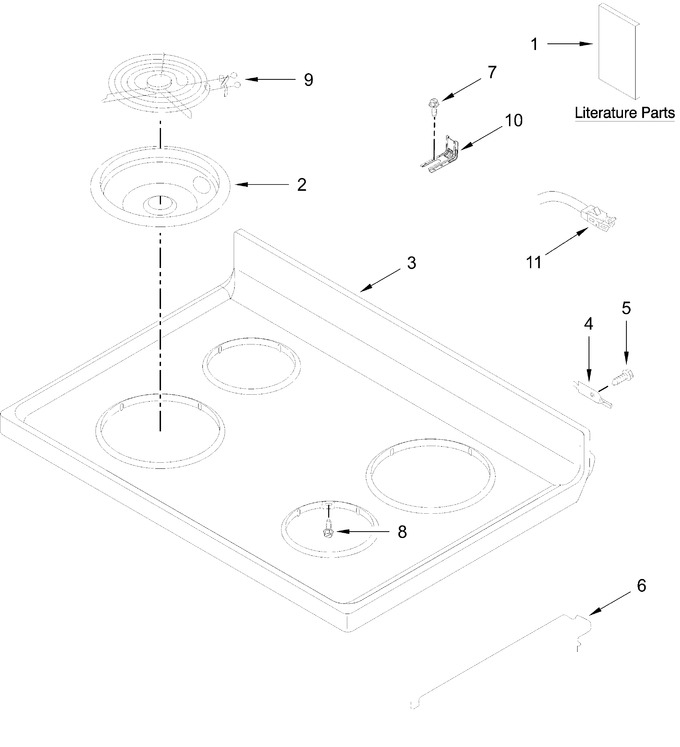

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WPW10196406		Bowl, Drip (6 In)   (Replaces: W10196406)			Immediately	$ 12.05
3	8195534		Cooktop (black)   (Replaces: 3186233)				$ 458.94
4	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.86
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
6	WP3195812		Rod, Support   (Replaces: 3195812)			Immediately	$ 7.86
7	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
8	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
9	W11396790		Element, Coil Heating (2400w)   (Replaces: W11364019)			Immediately	$ 113.84
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
11	814399		Receptacle, Element			Immediately	$ 38.87
	ARIB611E097F24A5B39CE73CD94D5F3EAC2		(left Front, Right Rear)		Appelez-nous	-
	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.98
	ARI2E962017DA4514642427E1A1F5A9C94C		(right Front, Left Rear)		Appelez-nous	-
	WPW10196405		Bowl, Drip (8 In)   (Replaces: W10196405)			Immediately	$ 15.56
	W11396691		Harness, Cooktop   (Replaces: W11134595)				$ 170.78
	W11750781		Harness, Main   (Replaces: W11648572)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 12.86
	W11745404		Owners, Manual		Appelez-nous	-
	W11396792		Element, Coil Heating (1500w)   (Replaces: W11364018)			Immediately	$ 112.00
	W11745406		Quick Start Guide		Appelez-nous	-
	W11746491		Tech Sheet		Appelez-nous	-
