Chassis Parts


Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)

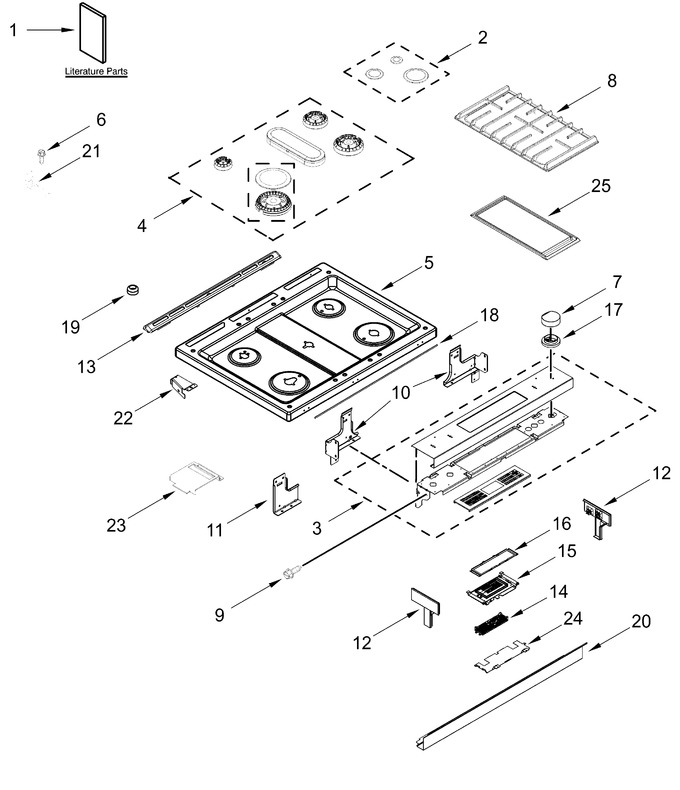

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11834855		Burner Cap Kit (black)   (Replaces: W11367440)		Appelez-nous	-
3	W10913685		Console (stainless)   (Replaces: W10901118)				$ 730.75
4	W11834876		Burner Kit (set Of 5)   (Replaces: W11367105)			Immediately	$ 257.45
5	W11445310		Cooktop (stainless)   (Replaces: W11117940)				$ 420.47
6	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
7	W10872674		Dual, Knob (stainless)   (Replaces: W10786064)			Immediately	$ 63.34
8	W11241056		Grate (black, Set Of 2)   (Replaces: W11188538)				$ 368.89
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
10	W10289170		Bracket,support (left)   (Replaces: W11563529)				$ 27.05
11	W10598048		Bracket, Console (center)				$ 23.16
12	W10555937		Endcap (stainless Left)				$ 61.16
13	W11170796		Trim, Vent (stainless)   (Replaces: W10636529)			Immediately	$ 131.18
14	W11620583		Control, Mrc2   (Replaces: W11541194)				$ 335.50
15	W11128223		Assembly, Display   (Replaces: W10759323)			Immediately	$ 529.17
16	W10555923		Bracket, User Interface				$ 96.69
17	W10814133		Bezel (stainless)   (Replaces: W10785119)			Immediately	$ 102.04
18	W11620671		Gasket, Console And Cooktop   (Replaces: W11512127)				$ 22.61
19	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 13.42
20	W10743276		Panel, Lower Console (stainless)				$ 78.01
21	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 21.77
22	W10162253		Brace, Corner (left)				$ 66.72
23	W11355689		Keypad Shield				$ 20.38
24	W10558372		Bracket, Control				$ 22.59
25	W10432544		Griddle			Immediately	$ 62.78
	W10555940		Endcap (stainless Right)				$ 61.16
	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
	W10162252		Brace, Corner (right)				$ 70.73
	W11477346		Quick Start Guide (english)		Appelez-nous	-
	ARIE85832542AA511D46539B872FEF29431		(left Rear, Right Front, Right Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W10872668		Single, Knob (stainless)   (Replaces: W10786065)			Immediately	$ 124.26
	ARIDDBB2534511DBECE61071949060B5BD8		(right Front, Right Rear, Left Rear, Center)		Appelez-nous	-
	W11563527		Bracket, Support (right)		Appelez-nous	-
	W10580316		Harness, Bake Drawer			Immediately	$ 167.12
	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 202.46
	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 67.76
	W11457137		Harness, Main				$ 285.27
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
	W11477345		Use And Care Guide		Appelez-nous	-
	W11565455		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
