SELECT A DIAGRAM

Control Panel Parts


Internal Oven Parts


Lower Oven Door Parts


Optional Parts (not Included)


Oven Parts


Upper Oven Door Parts

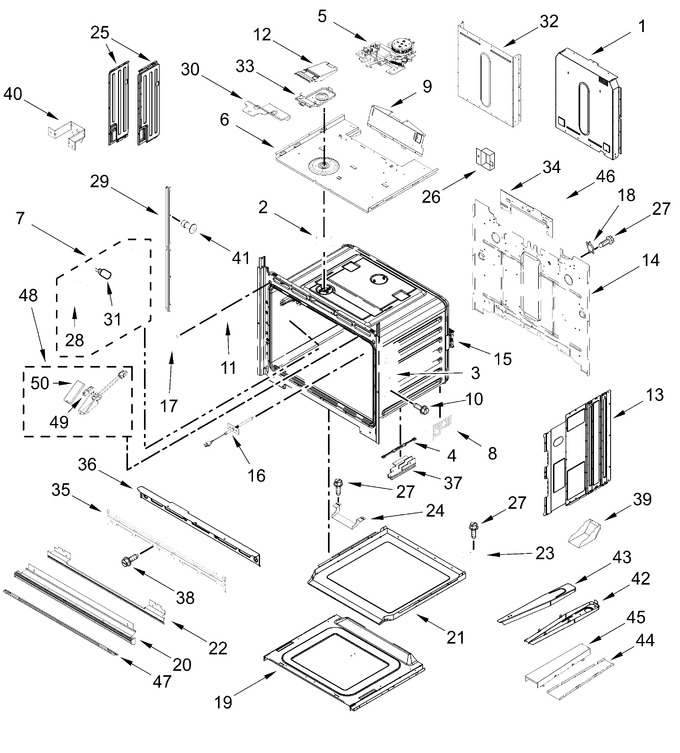

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11165250		Duct, Upper Chassis Back				$ 68.69
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 22.99
3	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 80.46
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 16.33
5	W11811612		Latch, Motorized   (Replaces: W11655005)			Immediately	$ 62.87
6	W11168071		Top, Chassis		Appelez-nous	-
7	W11292252		Light Assembly   (Replaces: W11205574)			Immediately	$ 96.73
8	W11598170		Foot, Base   (Replaces: W11245118)				$ 26.14
9	W10904163		Deflector, Blower			Immediately	$ 152.81
10	WPW10254050		Screw   (Replaces: W10254050)				$ 8.30
11	W11692454		Gasket   (Replaces: W11608108)				$ 132.23
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 72.89
14	ARICB6C68D1C295DC58D5B4CADE19064E44		Back, Chassis (not Serviced)		Appelez-nous	-
15	ARIF1DCB018B2324CAD9D04009CD738647B		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11758691		Probe, Sensor   (Replaces: W11685697)				$ 30.48
17	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 21.03
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 68.27
20	W11758169		Bottom Vent Assembly (stainless)   (Replaces: W11658601)				$ 167.02
21	W11244446		Duct, Bottom Chassis				$ 63.23
22	W11714646		Trim, Bottom Vent (black)   (Replaces: W11624689)				$ 81.30
23	W11135135		Support, Air Channel				$ 32.54
24	W11731183		Spacer, Bottom Chassis Duct   (Replaces: W11135125)				$ 34.97
25	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 66.65
26	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
27	7101P42660		Screw		Appelez-nous	-
28	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 86.70
29	W11235460		Cover, Side Trim (left)				$ 102.78
30	W11342780		Bracket, Top Front		Appelez-nous	-
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 103.05
32	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
33	W11256423		Base, Vent Exhaust		Appelez-nous	-
34	W11186652		Bracket, U-shape		Appelez-nous	-
35	W11235482		Vent, 30 In Center (black)				$ 96.26
36	W11715951		Vent, 30 In Top   (Replaces: W11334857)				$ 93.06
37	W11598169		Foot, Chassis (left)   (Replaces: W11245114)				$ 26.73
38	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 6.80
39	W11256432		Deflector, Lower Back Exhaust		Appelez-nous	-
40	W11344645		Hat Bracket, Vent		Appelez-nous	-
41	W11754870		Rivet (black)   (Replaces: W11696855)		Appelez-nous	-
42	W11256420		Base, Top Back Exhaust		Appelez-nous	-
43	W11256421		Cover, Top Back Exhaust		Appelez-nous	-
44	W11256430		Base, Lower Back Exhaust		Appelez-nous	-
45	W11256431		Cover, Lower Back Exhaust		Appelez-nous	-
46	W11211345		Foam, U-bracket		Appelez-nous	-
47	W11551866		Deflector, Vent (stainless)				$ 19.84
48	W11325525		Light Assembly   (Replaces: W11284709)				$ 90.92
49	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 46.52
50	W10169756		Lens, Light				$ 37.97
	W11244449		Insulation, Top Back		Appelez-nous	-
	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 80.36
	W11598168		Foot, Chassis (right)   (Replaces: W11245116)				$ 26.57
	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 66.65
	W11235461		Cover, Side Trim (right)				$ 102.78
