Control Panel Parts
Internal Oven Parts
Lower Oven Door Parts
Optional Parts (not Included)
Oven Parts
Upper Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

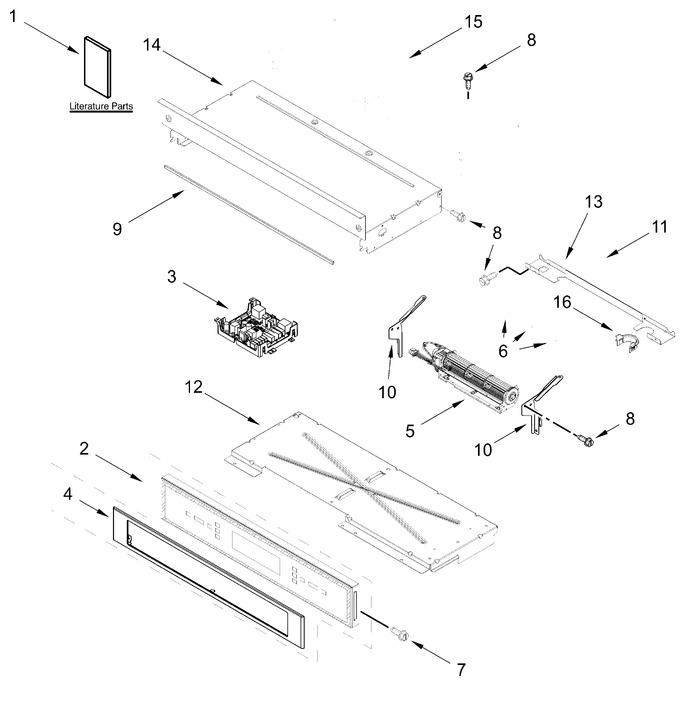

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11767820 | Control Panel Assembly (stainless) (Replaces: W11641348) |
|
- | |||||
| 3 | W11758701 | Appliance Manager (Replaces: W11734896) |
|
$ 364.59 | |||||
| 4 | W11197498 | Skin, Control Panel (stainless) |
|
Immediately | $ 337.36 | ||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 349.43 | ||||
| 6 | W10351295 | Bumper |
|
$ 19.91 | |||||
| 7 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 13.25 | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W11758703 | Tray, Electronic (Replaces: W11645754) |
|
- | |||||
| 13 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 14 | W11758704 | Cover, 30 In Top Front (Replaces: W11645756) |
|
- | |||||
| 15 | W11758705 | Cover, 30 In Top Back (Replaces: W11706417) |
|
- | |||||
| 16 | W11754861 | Guard, Wire (Replaces: W11691737) |
|
- | |||||
| W10655462 | Bracket, Blower (right) |
|
- | ||||||
| W10655464 | Bracket, Harness |
|
$ 36.64 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11754869 | Bag, Hardware (Replaces: W11705814) |
|
- | ||||||
| W11692367 | Owner's Manual |
|
- | ||||||
| W11692385 | Quick Start Guide |
|
- | ||||||
| W11698453 | Tech Sheet |
|
- | ||||||
| W11758702 | Appliance Manager (without Power Supply) (Replaces: W11402073) |
|
$ 364.59 | ||||||
| 4448664 | Clamp, Conduit |
|
$ 19.27 | ||||||
| W11132988 | Strap, Lead Ground |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | ||||||
| 4450800 | Screw, Grounding |
|
$ 12.12 | ||||||
| W11758708 | Harness, Comm And Eol (Replaces: W11476509) |
|
- | ||||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 55.62 | ||||||
| W11758707 | Harness, Signal (Replaces: W11476490) |
|
- | ||||||
| W11758706 | Harness, Main (Replaces: W11594929) |
|
$ 451.69 |
