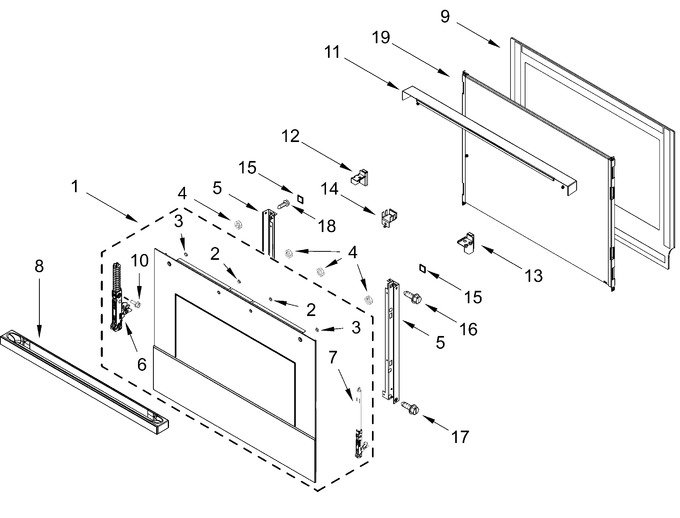

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11776058 | Outer Door Assembly (stainless, With Hinges) (Replaces: W11646818) |
|
$ 1,420.54 | |||||
| 2 | W11132942 | Spacer, Handle |
|
$ 15.15 | |||||
| 3 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 4 | W11602632 | Nut (Replaces: W11317741) |
|
- | |||||
| 5 | W11598126 | Rail, Door (left) (Replaces: W11302773) |
|
$ 39.25 | |||||
| 6 | W11758697 | Hinge, Door (left) (Replaces: W11646800) |
|
- | |||||
| 7 | W11758698 | Hinge, Door (right) (Replaces: W11646801) |
|
- | |||||
| 8 | W11411894 | Door Handle (stainless) |
|
$ 961.18 | |||||
| 9 | W11602610 | Glass Cavity Assembly (Replaces: W11260091) |
|
$ 533.12 | |||||
| 10 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 11 | W11705878 | Top Vent Trim Assembly (Replaces: W11671363) |
|
Immediately | $ 300.07 | ||||
| 12 | W11598130 | Bracket, Glass (left) (Replaces: W11302803) |
|
Immediately | $ 42.26 | ||||
| 13 | W11598128 | Bracket, Glass (right) (Replaces: W11302802) |
|
Immediately | $ 42.26 | ||||
| 14 | W11598131 | Bracket, Glass Reinforcement (Replaces: W11302954) |
|
$ 12.35 | |||||
| 15 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 11.20 | ||||
| 16 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.80 | |||||
| 17 | W11617225 | Screw (Replaces: W11290045) |
|
$ 13.29 | |||||
| 18 | W10443110 | Screw |
|
Immediately | $ 13.73 | ||||
| 19 | W11600213 | Air Divider Assembly (Replaces: W11304273) |
|
Immediately | $ 517.89 | ||||
| W11598127 | Rail, Door (right) (Replaces: W11302780) |
|
$ 39.25 |
