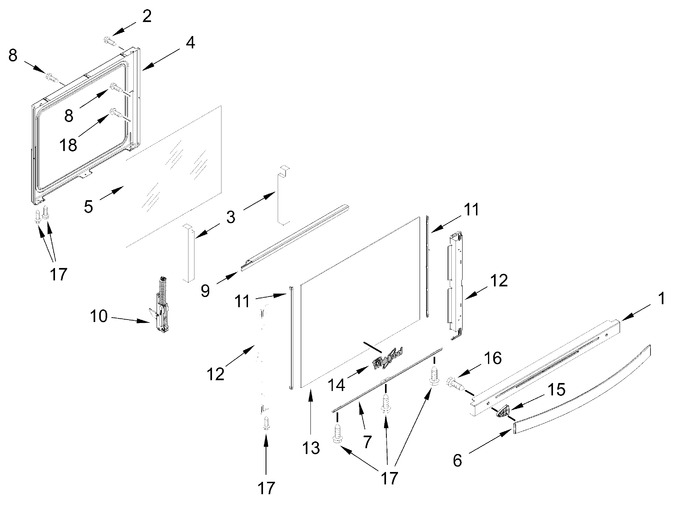

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11106937		Trim, Vent (white)   (Replaces: W10880612)			Immediately	$ 131.80
2	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 7.38
3	W11688565		Insulation, Door   (Replaces: W10772958)				$ 24.32
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 298.36
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 267.26
6	W11107407		Door, Handle (white)   (Replaces: W11022644)				$ 213.73
7	WPW10333990		Trim, Door Bottom (white)   (Replaces: W10333990)			Immediately	$ 72.20
8	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
9	W10294853		Bracket, Glass Liner			Immediately	$ 213.34
10	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
11	W10334003		Trim, Door Side (white)			Immediately	$ 80.72
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 120.38
13	W11107890		Glass, Outer (white)   (Replaces: W10871830)				$ 331.75
14	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
15	W10917797		Standoff, Handle (white)			Immediately	$ 64.81
16	W10896982		Screw   (Replaces: W10477496)				$ 7.56
17	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
