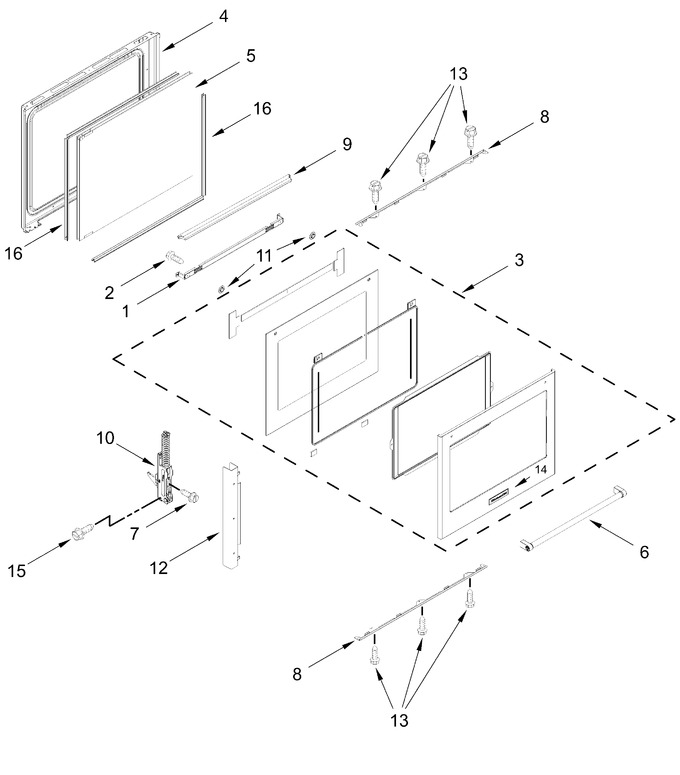

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Bracket, Glass Upper Handle |
|
$ 35.93 | |||||
| 2 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.90 | ||||
| 3 | WPW10634271 | Outer Door, Assembly (stainless) (Replaces: W10634271) |
|
$ 496.48 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 154.05 | |||||
| 6 | W11104399 | Door Handle (stainless) (Replaces: W10551000) |
|
$ 213.73 | |||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 8 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 9 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 125.70 | ||||
| 10 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 117.09 | ||||
| 11 | W11676355 | Washer, Door (Replaces: W10319024) |
|
$ 13.33 | |||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 13 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 14 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 15 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 16 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 27.94 |
