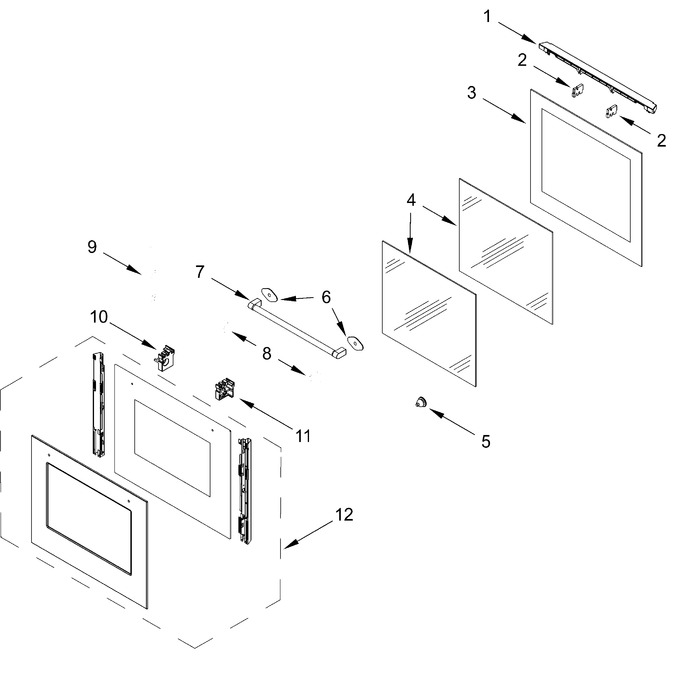

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10518369 | Vent, Door Trim Top |
|
Immediately | $ 113.08 | ||||
| 2 | W10518307 | Spacer, Door Trim Top |
|
$ 19.77 | |||||
| 3 | W11348805 | . Glass, Inner Door (Replaces: 480121101609) |
|
$ 163.32 | |||||
| 4 | W11778507 | Glass, Door Interior (Replaces: W10518376) |
|
$ 158.33 | |||||
| 5 | W10519004 | Spacer, Oven Door Glass |
|
$ 21.03 | |||||
| 6 | W10831792 | Spacer, Door Handle |
|
$ 16.20 | |||||
| 7 | W11594163 | Handle, Door (stainless) |
|
Immediately | $ 189.16 | ||||
| 8 | 481010387617 | . Support, Oven Door Glass |
|
$ 104.05 | |||||
| 9 | W11594221 | Hinge, Door (Replaces: W11594161) |
|
$ 74.94 | |||||
| 10 | W11509863 | Support, Oven Glass |
|
$ 126.37 | |||||
| 11 | W10518384 | Support, Oven Door Glass |
|
$ 109.26 | |||||
| 12 | W11594222 | Outer Door Assembly (stainless) (Replaces: W11594173) |
|
Immediately | $ 386.06 |
