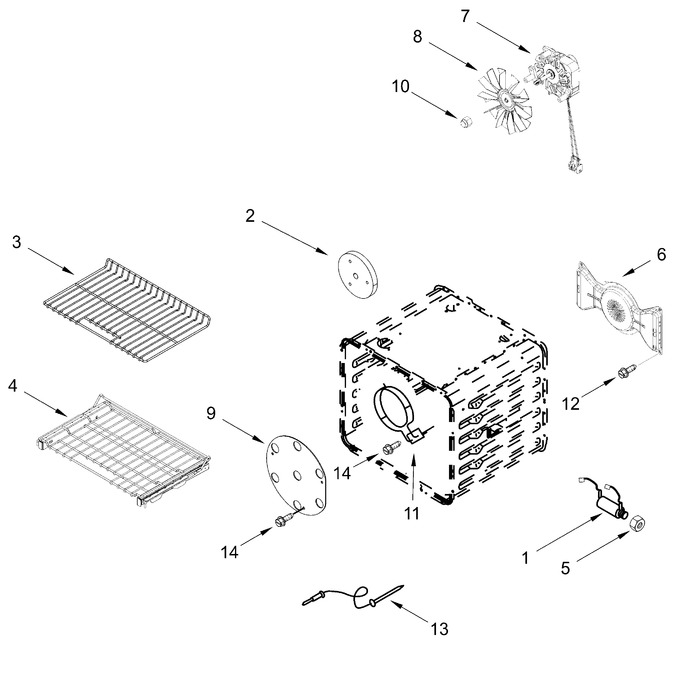

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
$ 143.37 | |||||
| 2 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 24.39 | ||||
| 3 | W11550107 | Rack, Oven (Replaces: W10570887) |
|
$ 105.40 | |||||
| 4 | W11496977 | Rack, Sliding Oven |
|
$ 407.38 | |||||
| 5 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.57 | |||||
| 6 | W11662207 | Baffle, Convection (Replaces: W11212180) |
|
$ 155.91 | |||||
| 7 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 299.07 | ||||
| 8 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 79.80 | ||||
| 9 | W10261523 | Plate, Fan |
|
$ 70.07 | |||||
| 10 | W10794042 | Nut, Acorn (left Hand Thread) (Replaces: W10631504) |
|
$ 11.83 | |||||
| 11 | W11098505 | Element, Convection Heat |
|
$ 143.51 | |||||
| 12 | W10739592 | Screw |
|
- | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 |
