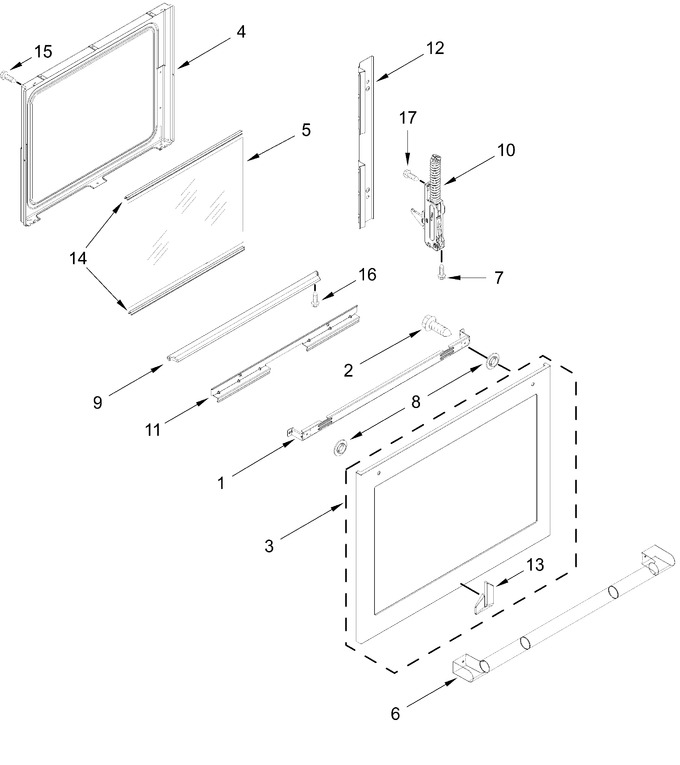

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Bracket, Glass Upper Handle |
|
$ 35.93 | |||||
| 2 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.90 | ||||
| 3 | W11647013 | Outer Door, Assembly (stainless) (Replaces: W11618950) |
|
$ 395.96 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 154.05 | |||||
| 6 | W11647008 | Door Handle (stainless) (Replaces: W11600908) |
|
Immediately | $ 352.89 | ||||
| 7 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 8 | W11676355 | Washer, Door (Replaces: W10319024) |
|
$ 13.33 | |||||
| 9 | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 110.71 | |||||
| 10 | W11647009 | Hinge, Slow Close (Replaces: W11592970) |
|
Immediately | $ 74.47 | ||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 13 | W11700312 | Badge (stainless) (Replaces: W11238658) |
|
Immediately | $ 104.89 | ||||
| 14 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 27.94 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 16 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 |
