SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Liner


04 - Freezer Liner


05 - Freezer Door


06 - Refrigerator Door

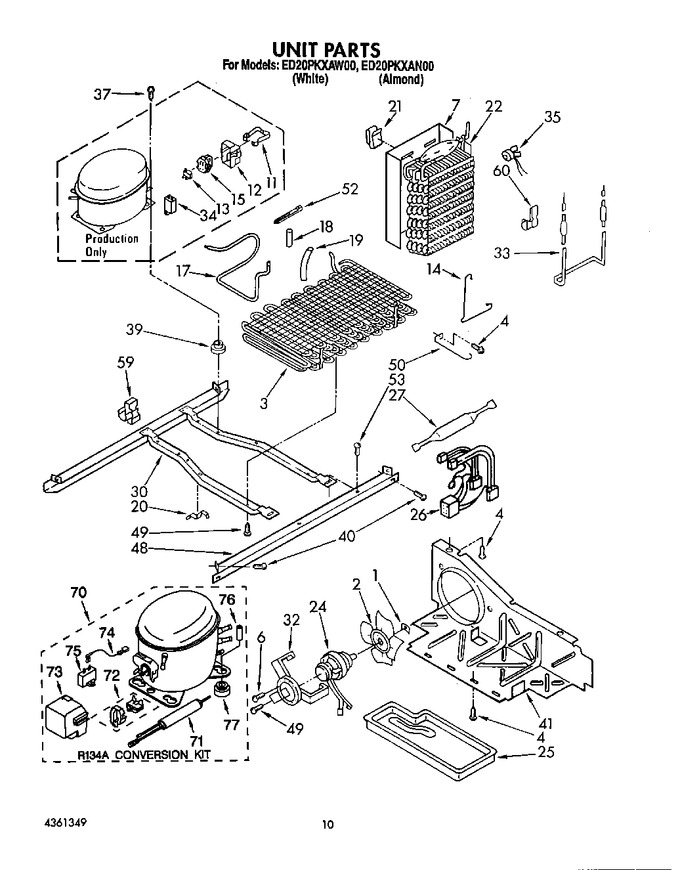

07 - Unit


08 - Air Flow


09 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
7	2149293		Heat Sheild, Drain Pan		Appelez-nous	-
11	943322		Spring, Relay Case		Appelez-nous	-
12	1105055		Case, Relay		Appelez-nous	-
13	WP2149959		Overload (includes Relay)   (Replaces: 2149959)				$ 140.06
14	2161329		Clip, Defrost Heater		Appelez-nous	-
17	2205764		Tube, Suction   (Replaces: 2155649)				$ 89.18
18	WP2158826		Dampener (3)   (Replaces: 2158826)				$ 1.82
19	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
21	2155547		Clip, Heat Shield		Appelez-nous	-
22	WP2188822		Evaporator   (Replaces: 2155500)			Immediately	$ 356.84
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 109.14
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
26	2153994		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
30	1127942		Unit Mounting Frame		Appelez-nous	-
32	2162062		Bracket, Fan Motor		Appelez-nous	-
33	2162079		Heater, Defrost		Appelez-nous	-
34	WPW10662129		Capacitor   (Replaces: 1114291)			Immediately	$ 58.86
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
39	2162067		Grommet (4)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
52	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
59	2155658		Clip, Wire And Water Tube		Appelez-nous	-
60	2161330		Clip (2)		Appelez-nous	-
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 90.65
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 191.05
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
76	4387559		Sleeve		Appelez-nous	-
77	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
77	978026		Valve, Access (5/16``)			Immediately	$ 134.49
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
77	978028		Valve, Access (1/2)		Appelez-nous	-
77	978029		Valve Access (5/8``)				$ 93.85
77	978030		Valve, Access (3/4``)				$ 137.25
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
77	876764		Valve, Access(3/16``)			Immediately	$ 95.92

    View Diagram in Separate Window       Print Part List
