SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Freezer Door


05 - Refrigerator Door

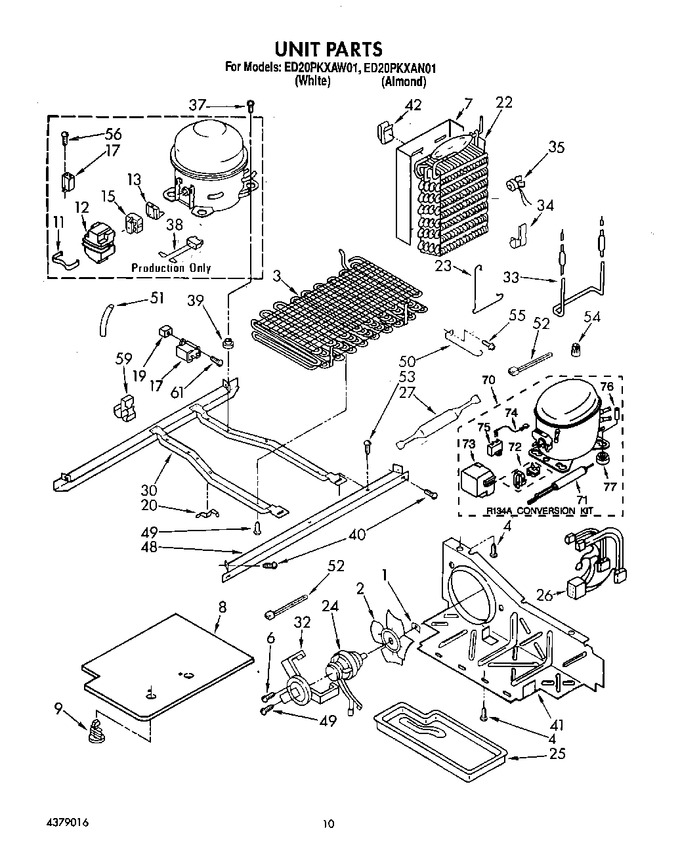

06 - Unit


07 - Air Flow


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	2160505		Cover, Unit Compartment		Appelez-nous	-
9	489396		Clip				$ 11.26
11	938384		Strap		Appelez-nous	-
12	1108115		Cover		Appelez-nous	-
13	1108114		Overload) (service (includes Relay)		Appelez-nous	-
13	4387535		Overload (production (includes Relay))   (Replaces: 2159596)				$ 191.05
15	N/A		Relay (see Overload)		Appelez-nous	-
17	WPW10662129		Capacitor (service)   (Replaces: 1118581)			Immediately	$ 58.86
17	2154565		Capacitor (production)		Appelez-nous	-
19	509812		Screw, Grommit		Appelez-nous	-
20	548744		Clip, Unit Cover (2)		Appelez-nous	-
22	WP2188822		Evaporator   (Replaces: 2155500)			Immediately	$ 356.84
23	2161329		Clip		Appelez-nous	-
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 109.14
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
26	2153994		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 57.13
30	2160498		Unit Mounting Frame		Appelez-nous	-
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162079		Heater, Defrost		Appelez-nous	-
34	2161330		Clip, Heater		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.79
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 8.51
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
52	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
53	WP489427		Screw   (Replaces: 489339)				$ 7.84
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489242)				$ 8.18
56	W11693756		Screw   (Replaces: 487240)			Immediately	$ 14.76
59	2155658		Clip, Wire And Water Tube		Appelez-nous	-
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 90.65
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 191.05
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
76	4387559		Sleeve		Appelez-nous	-
77	876764		Valve, Access(3/16``)			Immediately	$ 95.92
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
77	978029		Valve Access (5/8``)				$ 93.85
77	978030		Valve, Access (3/4``)				$ 137.25
77	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
77	978026		Valve, Access (5/16``)			Immediately	$ 134.49
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
77	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
