Bulkhead Parts
Cabinet Parts
Door Parts
Dryer Heating Parts-electric
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

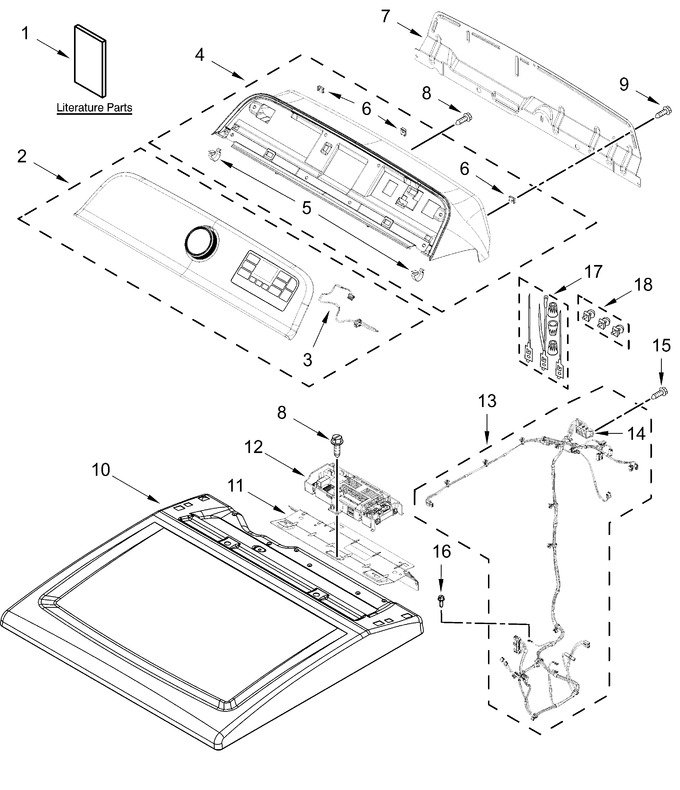

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11801598 | Fascia Assembly (Replaces: W11620082) |
|
- | |||||
| 3 | W11721377 | Harness, User Interface (hmi) (Replaces: W11164276) |
|
$ 27.98 | |||||
| 4 | W11406678 | Console Assembly (white) (Replaces: W11127506) |
|
Immediately | $ 339.08 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 7.32 | |||||
| 7 | W11433112 | Panel, Rear Console |
|
$ 59.47 | |||||
| 8 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 9 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 10 | W11641121 | Top (white) (Replaces: W11623537) |
|
Immediately | $ 193.59 | ||||
| 11 | W11431865 | Bracket, Electronic Control (Replaces: W10896068) |
|
$ 51.62 | |||||
| 12 | W11771778 | Appliance Control Unit (acu) (Replaces: W11741191) |
|
- | |||||
| 13 | W11690904 | Harness, Main (Replaces: W11556657) |
|
$ 211.59 | |||||
| 14 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 21.75 | |||||
| 15 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 16 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 13.28 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 18 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| W11691183 | Quick Start Guide |
|
- | ||||||
| W11691176 | Installation Instructions |
|
- |
