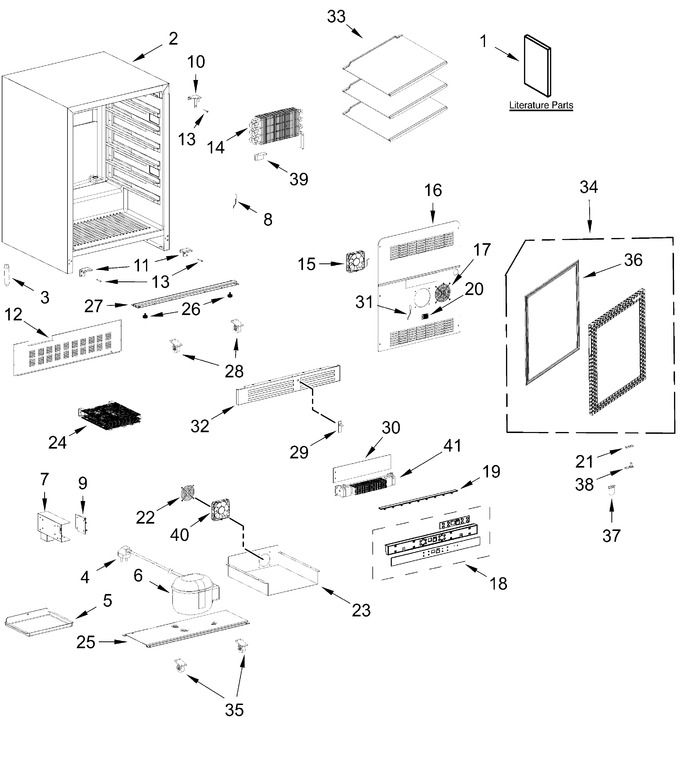

Beverage Center


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	W10782264		Led Light		Appelez-nous	-
20	W10782222		Cover, Sensor		Appelez-nous	-
21	W11255595		Stop, Door				$ 68.81
22	W10782255		Cover, Condenser Fan		Appelez-nous	-
23	W11255160		Cover, Condenser		Appelez-nous	-
24	W10782251		Condenser		Appelez-nous	-
25	W11542683		Control Panel Assembly		Appelez-nous	-
26	W10782249		Leg			Immediately	$ 16.03
27	W11823723		Support, Front Leg   (Replaces: W11535805)		Appelez-nous	-
28	W11535807		Caster, Front Swivel		Appelez-nous	-
29	W11772727		Switch   (Replaces: W11769483)		Appelez-nous	-
30	W11535803		Heater Protector Plate		Appelez-nous	-
31	W11296649		Sensor (white Connector)				$ 112.71
32	W11772726		Kick Plate   (Replaces: W11769482)		Appelez-nous	-
33	W11535816		Assembly, Glass		Appelez-nous	-
34	W11544596		Door Assembly		Appelez-nous	-
35	W11535813		Caster, Back Swivel		Appelez-nous	-
36	W10782239		Gasket, Door				$ 240.08
37	W11772725		Plate, Switch   (Replaces: W11769481)		Appelez-nous	-
38	W10782241		Axis, Door				$ 57.38
39	W11255620		Foam		Appelez-nous	-
40	W11678274		Fan Assembly, Condenser   (Replaces: W10782254)			Immediately	$ 281.11
41	W11535794		Heater		Appelez-nous	-
	ARI651F260D71BD8C55325D6E0638864C82		35 Grams (r600a)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
