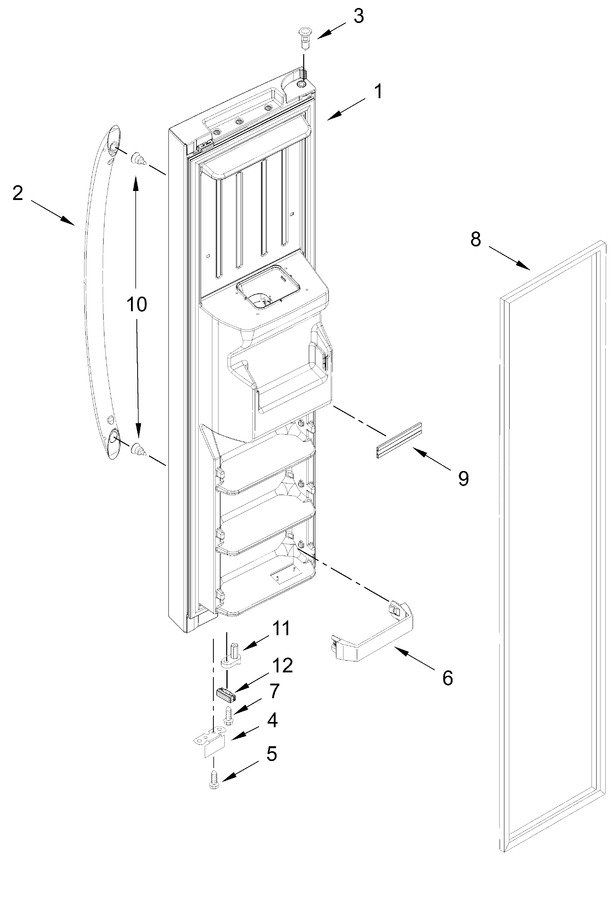

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11668528 | Door Assembly, Freezer (white, Includes Door Gasket) (Replaces: W11662222) |
|
- | |||||
| 2 | W11720842 | Handle Assembly (stainless) (Replaces: W11657843) |
|
$ 161.49 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.34 | |||||
| 4 | W11557261 | Bracket, Door Stop (Replaces: W11481757) |
|
Immediately | $ 16.80 | ||||
| 5 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 6 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 55.34 | |||||
| 7 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 8 | 2159074 | Gasket, Door (beige) (Replaces: W10912123) |
|
$ 293.13 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 21.84 | ||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 11 | W11661926 | Thimble, Cam (Replaces: W10900532) |
|
$ 12.62 | |||||
| 12 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 13.44 |
