Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI4741983F61CAC445F12C0C1FD1B613C1 Literature Parts Appelez-nous -
2 W10854958 Screw   (Replaces: 12990302) Special Order $ 7.90

3 WPW10344432 Block, Pivot   (Replaces: W10344432) In-Stock Immediately $ 19.16

4 ARI2948F547D7C4C1B6CA0878B04EDFC4EF Cabinet (not A Servicable Part) Appelez-nous -
5 W11756839 Board, Control   (Replaces: W11724451) In-Stock Immediately $ 424.11

6 W10415341 Gasket, Hv Box Special Order $ 37.00

7 W11534848 Gasket, Unit Cover In-Stock Immediately $ 22.34

8 WPW10141622 Brake, Roller   (Replaces: W10141622) In-Stock Immediately $ 8.24

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

10 W11592405 Hinge, Top (left Hand)   (Replaces: W11456644) Special Order $ 32.31

11 W11592404 Hinge, Top (right Hand)   (Replaces: W11456643) Special Order $ 25.90

12 W10407157 Cover, Top Hinge (black, Right Hand) Special Order $ 23.06

13 W10471617 Cover, Top Hinge (black, Left Hand, Includes Foil) Special Order $ 24.13

14 W11126052 Screw   (Replaces: W10731474) In-Stock Immediately $ 14.73

15 W10407275 Hinge, Center (black, Right Hand)   (Replaces: W10248702) Special Order $ 79.94

16 W10407279 Hinge, Center (black, Left Hand)   (Replaces: W10248705) Special Order $ 82.59

17 67003485 Cover, Corner (black)   (Replaces: 12587703B) In-Stock Immediately $ 22.14

18 W11820444 Roller Assembly (left Hand)   (Replaces: W10515763) In-Stock Immediately $ 37.35

19 W11820445 Roller Assembly (right Hand)   (Replaces: W10515762) In-Stock Immediately $ 37.35

20 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 8.15

21 W11686675 Screw   (Replaces: 12990702) Special Order $ 14.27

22 WPW10637669 Grille, Toe (black)   (Replaces: W10637669) Special Order $ 134.32

23 W11214483 Screw   (Replaces: 12992601) In-Stock Immediately $ 14.72

24 W10336736 Cover, Roller   (Replaces: W11578005) Appelez-nous -
25 W10141518 Screw Special Order $ 9.54

26 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

27 W10768379 Lid, Hv Special Order $ 83.60

28 W10754144 Cover, Control Box Special Order $ 86.16

29 W11396033 Switch, Light   (Replaces: W10847849) In-Stock Immediately $ 37.30

30 W11482027 Cover, Unit   (Replaces: W11364644) In-Stock Immediately $ 121.36

31 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 22.40

32 W11482381 Tube, Water   (Replaces: W11296599) In-Stock Immediately $ 112.35

33 W10673842 Screw (black) Special Order $ 14.53

34 W10212137 Retainer, Door Special Order $ 13.69

35 W11482025 Valve, Water   (Replaces: W11460084) In-Stock Immediately $ 301.85

36 WPW10505294 Coupler, Door   (Replaces: W10505294) Special Order $ 11.90

W11756451 Tech Sheet Appelez-nous -
W11647506 Energy Guide Appelez-nous -
W11502338 Owners Manual Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

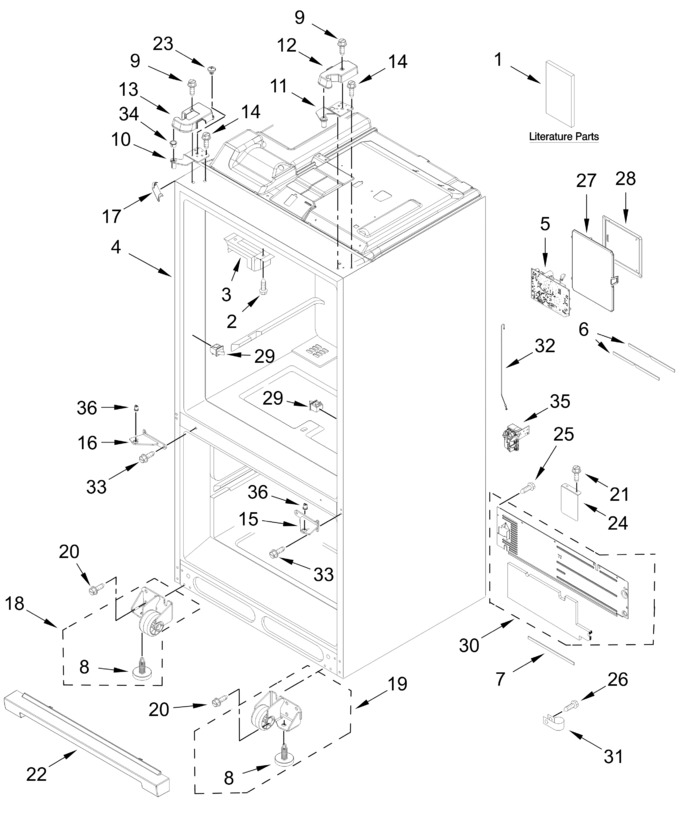

Diagram for WRF757SDHV07
