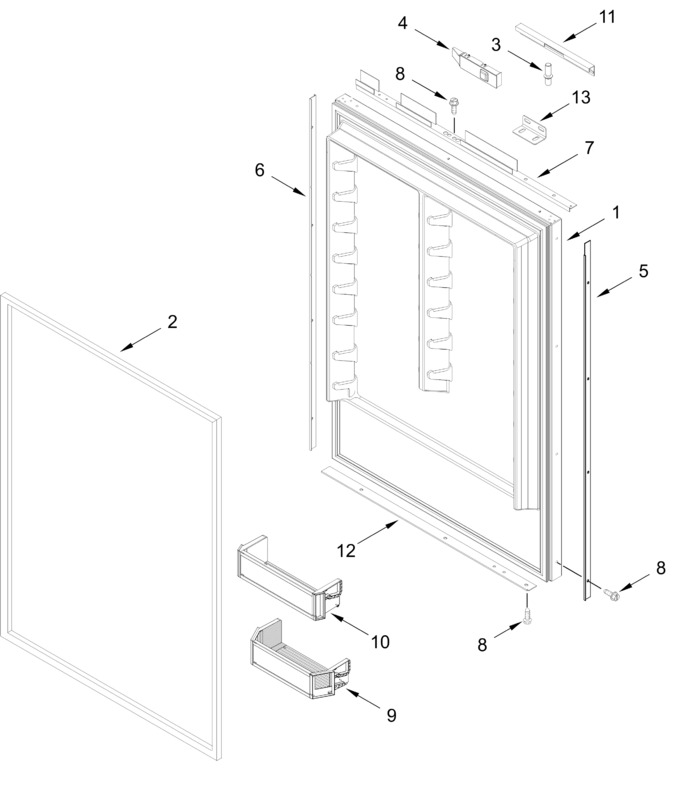

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797621		Right Door Assembly, Black (includes Door Gasket)   (Replaces: W10667904)		Appelez-nous	-
2	W11625610		Gasket, Door (black)   (Replaces: W10613072)				$ 377.80
3	W10234194		Pin, Top Door				$ 17.66
4	W10606813		Insert, Door Arm (grey, Top)				$ 36.38
5	W10648977		Trim, Door (grey, Right Hand, Handle Side)			Immediately	$ 253.14
6	W10613074		Trim, Door (grey, Hinge Side)				$ 305.40
7	W10648973		Trim, Door (grey, Right Hand, Top)		Appelez-nous	-
8	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
9	W11350965		Bin, Gallon				$ 396.14
10	W10529451		Bin, Shallow				$ 389.68
11	W10648975		Cover, Door (grey, Right Hand, Top)				$ 249.12
12	W10648982		Trim, Door (grey, Right Hand, Bottom)		Appelez-nous	-
13	W10606841		Bracket, Panel Mounting (grey)				$ 39.81
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W10772223		Mat, Door Bin		Appelez-nous	-
	W10606814		Insert, Door Arm (grey, Bottom)				$ 34.47
