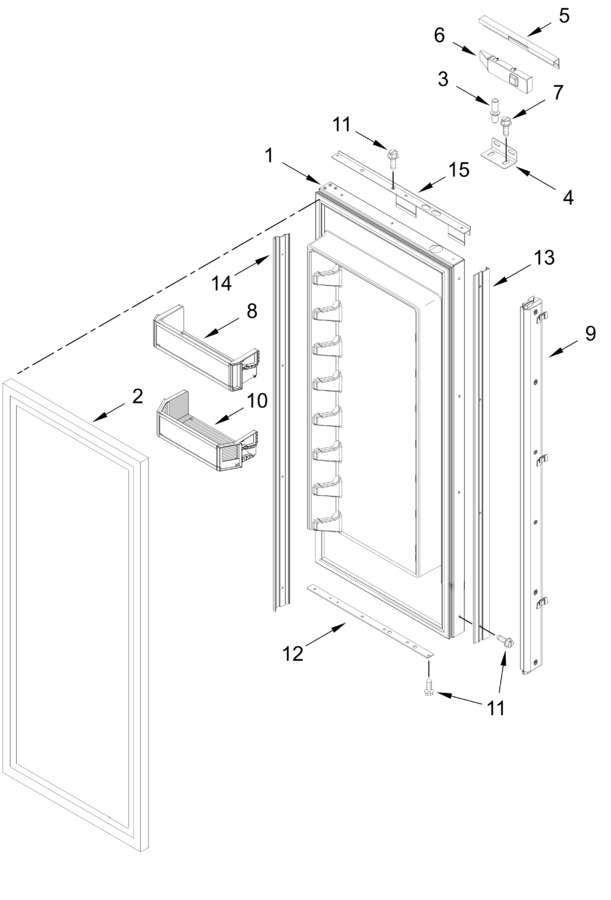

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11827066 | Left Door Assembly (includes Door Gasket) (Replaces: W10651536) |
|
- | |||||
| 2 | ARIE060947F3E9DFCFFF199FFAE3A3CD234 | Gasket, Door (not Available Separately-must Order Refrigerator Door) |
|
- | |||||
| 3 | W10234194 | Pin, Top Door |
|
$ 15.89 | |||||
| 4 | W10606841 | Bracket, Panel Mounting (grey) |
|
$ 35.83 | |||||
| 5 | W10582015 | Cover, Door (grey, Top) |
|
- | |||||
| 6 | W10606813 | Insert, Door Arm (grey, Top) |
|
$ 32.74 | |||||
| 7 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.04 | |||||
| 8 | W10578270 | Bin, Door (shallow) |
|
$ 334.31 | |||||
| 9 | W11590870 | Mullion Assembly (charcoal Sparkle) |
|
$ 129.85 | |||||
| 10 | W11350963 | Bin, Door (gallon) |
|
- | |||||
| 11 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.32 | ||||
| 12 | W10564260 | Trim, Door (grey, Left Hand, Bottom) |
|
- | |||||
| 13 | W10606806 | Trim, Door (grey, Left Hand, Handle Side) |
|
$ 260.97 | |||||
| 14 | W10606803 | Trim, Door (grey, Hinge Side) |
|
Immediately | $ 92.06 | ||||
| 15 | W10564257 | Trim, Door (grey, Left Hand, Top) |
|
- | |||||
| ARIC236D3C59A55E01B8A89A671E948FF57 | Right Hand |
|
- | ||||||
| W10772222 | Mat, Door Bin |
|
- | ||||||
| W10726561 | Cover, Door (grey, Rc, Top) |
|
Immediately | $ 148.39 | |||||
| W11827079 | Right Door Assembly (includes Door Gasket) (Replaces: W10651537) |
|
$ 730.69 | ||||||
| W10564262 | Trim, Door (grey, Right Hand, Top) |
|
- | ||||||
| W10564267 | Trim, Door (grey, Right Hand, Bottom) |
|
- | ||||||
| ARI918EA51C669253CD37B34596C035B44C | Left Hand |
|
- | ||||||
| W10606814 | Insert, Door Arm (grey, Bottom) |
|
$ 31.02 | ||||||
| W10606802 | Trim, Door (grey, Right Hand, Handle Side) |
|
$ 103.88 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
