Cabinet Parts


Cabinet Trim Parts


Freezer Door And Basket Parts


Freezer Liner And Icemaker Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

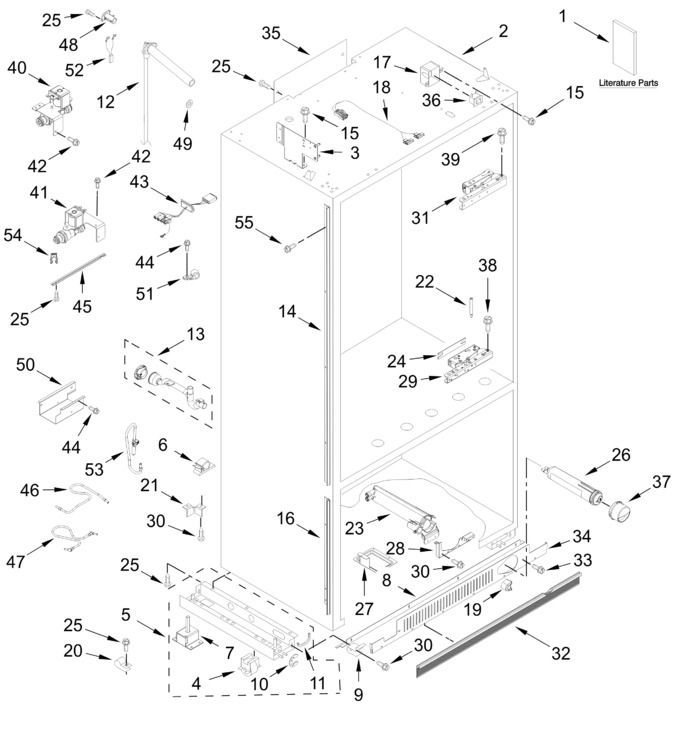

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	W11042558		Bracket, Grille (grey, Left Hand, Includes Rivet Nut)				$ 85.68
4	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 40.81
5	W10860229		Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275)				$ 343.65
6	W10663352		Clip				$ 19.72
7	2005032		Leveler, Adjustable			Immediately	$ 180.06
8	W10634858		Trim, Top Grille (grey)				$ 225.69
9	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 38.93
10	2006841		Ring, Retainer				$ 83.39
11	2307584		Grommet, Crossover Tube				$ 21.06
12	2317847		Tube Assembly, Water Inlet				$ 77.72
13	W11291510		Tube Assembly, Drain				$ 69.27
14	W10687588		Trim, Side (grey, Left Hand)		Appelez-nous	-
15	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
16	W10714137		Trim, Side (grey, Left Hand)				$ 78.97
17	W11624203		Cover, Switch   (Replaces: W11577783)		Appelez-nous	-
18	W10740131		Wire, Top Switch Jumper				$ 115.96
19	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 68.78
20	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.39
21	2006617		Bracket, Base Support (rear)		Appelez-nous	-
22	W10234202		Pin, Door Stop				$ 82.56
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 243.77
24	W10291661		Spacer, Hinge				$ 15.18
25	W11624204		Screw   (Replaces: 486194)				$ 13.25
26	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
27	2318189		Tray, Filter Drip				$ 133.86
28	W11755873		Bracket, Filter   (Replaces: W11695780)				$ 72.30
29	W10828686		Hinge, Bottom (grey)   (Replaces: W10806865)				$ 413.45
30	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
31	W10691145		Hinge, Top (grey, Left Hand)			Immediately	$ 425.23
32	WPW10188547		Skirt, Grille (black)   (Replaces: W10188547)			Immediately	$ 148.75
33	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 7.54
34	W11739145		Grille, Bottom   (Replaces: W11695785)			Immediately	$ 188.17
35	2215612		Cover, Air Duct		Appelez-nous	-
36	W11624786		Switch, Light   (Replaces: W11593919)			Immediately	$ 38.80
37	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 45.61
38	WPW10142233		Screw   (Replaces: W10142233)				$ 8.04
39	W11721628		Screw   (Replaces: W11370632)			Immediately	$ 13.30
40	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 178.99
41	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 178.99
42	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
43	W11479397		Wire Assembly, Water Valve				$ 70.87
44	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
45	2320559		Support, Valve				$ 79.91
46	W10619899		Tube, Filter Inlet				$ 41.62
47	W10635851		Tube, Filter Outlet				$ 79.71
48	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 185.92
49	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 9.39
50	W10619291		Shield, Valve Electrical		Appelez-nous	-
51	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 20.16
52	W10482373		Wire Assembly, Fill Tube Heater				$ 112.59
53	W11690636		Waterline, Cust Connect   (Replaces: W10577944)				$ 117.49
54	W10782423		Locking Ring (1/4")				$ 21.93
55	WP1163283		Screw   (Replaces: 1163283)				$ 6.80
	W10687582		Trim, Side (grey, Right Hand)				$ 218.18
	W10704869		Template, Door (wood Panel)				$ 159.32
	W11644481		Energy Guide		Appelez-nous	-
	W11700299		Hinge, Top (grey, Right Hand)   (Replaces: W10691136)			Immediately	$ 457.16
	W10860448		Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423)			Immediately	$ 344.70
	W11042559		Bracket, Grille (grey, Right Hand, Includes Rivet Nut)				$ 87.55
	W10744761		Template, Grill (wood Panel)				$ 73.73
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11175806		Kit, Installation   (Replaces: W10613135)				$ 251.66
	W10782424		Locking Ring(5/16")		Appelez-nous	-
	W10234156		Installation Block				$ 15.09
	W11511880		Installation Instructions		Appelez-nous	-
	W11511885		Tech Sheet		Appelez-nous	-
	W11511887		Wiring Diagram		Appelez-nous	-
	W11511882		Use And Care Guide		Appelez-nous	-
	W10687583		Trim, Side (grey, Right Hand)				$ 145.52
