SELECT A DIAGRAM

Diagram for Cabinet Parts
Cabinet Parts

Diagram for Cabinet Trim Parts
Cabinet Trim Parts

Diagram for Freezer Door And Basket Parts
Freezer Door And Basket Parts

Diagram for Freezer Liner & Icemaker Parts
Freezer Liner & Icemaker Parts

Diagram for Lower Unit And Tube Parts
Lower Unit And Tube Parts

No Diagram Image Available
Optional Parts

Diagram for Refrigerator Door Parts
Refrigerator Door Parts

Diagram for Refrigerator Liner Parts
Refrigerator Liner Parts

Diagram for Shelf Parts
Shelf Parts

Diagram for Top Grille And Unit Cover Parts
Top Grille And Unit Cover Parts

Diagram for Upper Unit Parts
Upper Unit Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI589064634E2979140E037AC863CDA0FD Breaker, Trim (not Serviced) Appelez-nous -
2 W10606848 Trim, Cabinet (black, Left Side) Special Order $ 316.74

3 W10714135 Trim, Cabinet (black, Right Side) Special Order $ 327.83

4 W11623674 Trim, Cabinet (charcoal Sparkle, Right Hand, Top)   (Replaces: W11577754) Special Order $ 130.07

5 W11624204 Screw   (Replaces: 486194) Special Order $ 13.25

6 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 7.25


    View Diagram in Separate Window     Print Icon   Print Part List

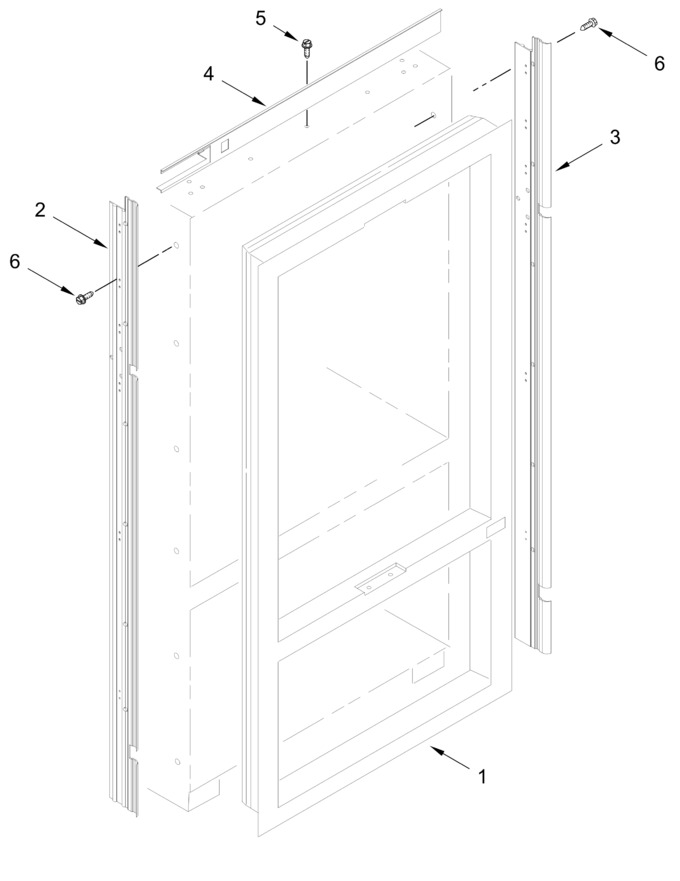

Diagram for JB36NXFXRE25
