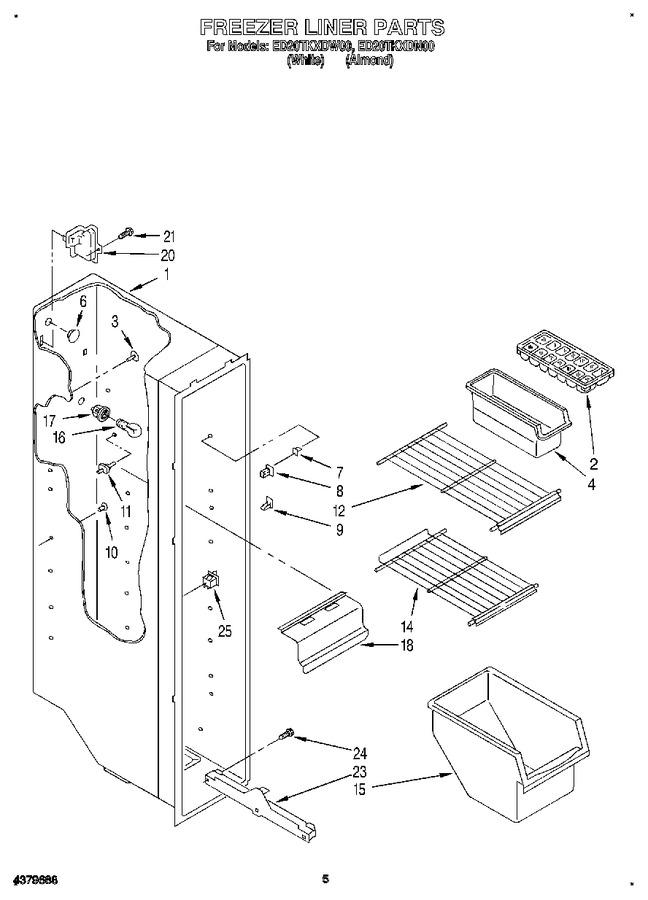

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
4	WP982704		Container   (Replaces: 1116917)				$ 32.55
6	655411		Hole Plug		Appelez-nous	-
7	946355		Support, Stud (10)		Appelez-nous	-
8	946356		Stud, Front (4)		Appelez-nous	-
9	1106982		Stud R.s. Rear (4)		Appelez-nous	-
10	2176134		Grommet (10)				$ 5.83
11	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 32.85
12	2163612		Shelf		Appelez-nous	-
14	2174269		Shelf (1)		Appelez-nous	-
14	2174270		Shelf (2)		Appelez-nous	-
15	2171707		Bin, Freezer		Appelez-nous	-
16	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
17	WPW10119935		Socket, Assembly   (Replaces: 2155597)				$ 106.16
18	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
20	2155401		Cover, Wiring		Appelez-nous	-
21	WP488729		Screw   (Replaces: 489176)			Immediately	$ 8.28
23	1115383		Slide, Freezer Bin (left Side)		Appelez-nous	-
23	W10845583		Slide, Freezer Bin (right Side)   (Replaces: 1119293)				$ 130.12
24	718257		Screw   (Replaces: 489100)		Appelez-nous	-
25	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
