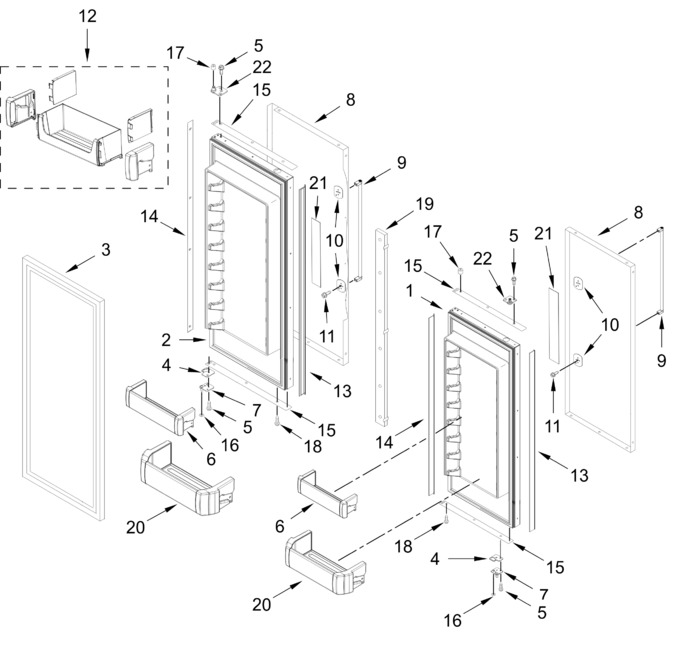

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11827080		Left Door Assembly (includes Door Gasket)   (Replaces: W10796466)				$ 682.70
2	W11827071		Right Door Assembly (includes Door Gasket)   (Replaces: W10600634)				$ 730.69
3	W10600741		Gasket, Door (grey)				$ 228.32
4	W11673500		Spacer, Door Hinge (bottom)   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	W10529548		Bin, Door (shallow)				$ 261.73
7	W10273369		Hinge Assembly, Bottom (left Hand)				$ 37.09
8	W11797602		Skin, Rc Door (black Stainless)   (Replaces: W10752225)		Appelez-nous	-
9	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 195.04
10	W10127710		Plate, Handle Door			Immediately	$ 23.35
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
12	W11610621		Bin, Top Door		Appelez-nous	-
13	W10600736		Spacer, Door Edge (handle Side)				$ 273.29
14	W10600734		Spacer, Door Edge (hinge Side)				$ 267.44
15	W10600732		Spacer, Door (top/ Bottom)				$ 152.08
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 48.78
18	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
19	W11812028		Mullion Assembly   (Replaces: W11590864)			Immediately	$ 219.47
20	W10529544		Bin, Door (gallon)				$ 284.41
21	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
22	W11779146		Hinge Assembly, Top   (Replaces: W11657507)			Immediately	$ 48.98
	W10273367		Hinge Assembly, Bottom (right Hand)				$ 37.14

    View Diagram in Separate Window       Print Part List
