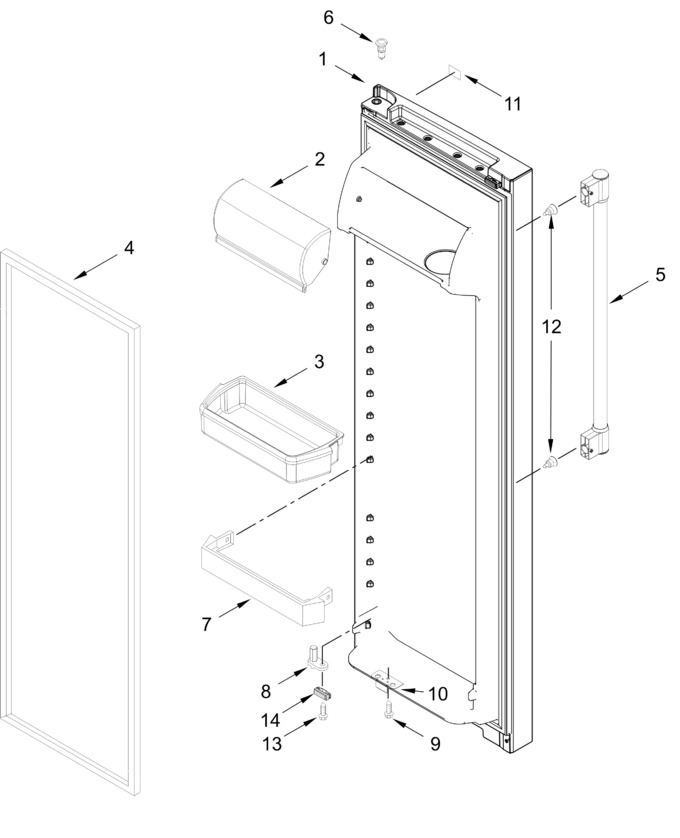

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912118 | Door Assembly (white, Includes Door Gasket) (Replaces: W10912118) |
|
$ 780.50 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | W11174793 | Bin, Door (Replaces: W11034658) |
|
$ 144.92 | |||||
| 4 | 2159075 | Gasket, Door (beige) (Replaces: W10911412) |
|
Immediately | $ 299.70 | ||||
| 5 | W10918556 | Assembly, Handle (white) (Replaces: W10891380) |
|
$ 170.59 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.34 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 68.69 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 12.41 | |||||
| 9 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 10 | W11557261 | Bracket, Door Stop (Replaces: W11481760) |
|
Immediately | $ 16.80 | ||||
| 11 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 35.64 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 13 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 14 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 13.44 |
