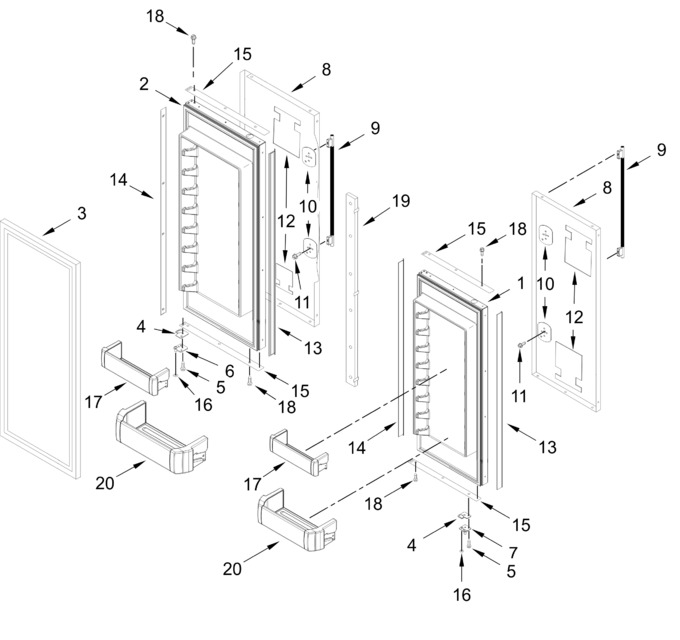

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10651466		Left Door Assembly (includes Door Gasket)		Appelez-nous	-
2	W11819019		Right Door Assembly (includes Door Gasket)   (Replaces: W11779691)		Appelez-nous	-
3	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 289.24
4	W11673500		Spacer, Door Hinge (bottom)   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	W10273369		Hinge Assembly, Bottom (left Hand)				$ 37.09
7	W10273367		Hinge Assembly, Bottom (right Hand)				$ 37.14
8	W11818996		Skin, Rc Door (juniper Green)   (Replaces: W11737846)		Appelez-nous	-
9	W11798412		Handle Assembly   (Replaces: W11737005)		Appelez-nous	-
10	W10127710		Plate, Handle Door			Immediately	$ 23.35
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
12	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
13	W10600736		Spacer, Door Edge (handle Side)				$ 273.29
14	W10600734		Spacer, Door Edge (hinge Side)				$ 267.44
15	W10535347		Spacer, Door (top And Bottom)				$ 148.76
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
17	W10529449		Bin, Door (shallow)				$ 246.66
18	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
19	W11590867		Mullion Assembly				$ 137.57
20	W10578289		Bin, Door (gallon)				$ 273.12

    View Diagram in Separate Window       Print Part List
