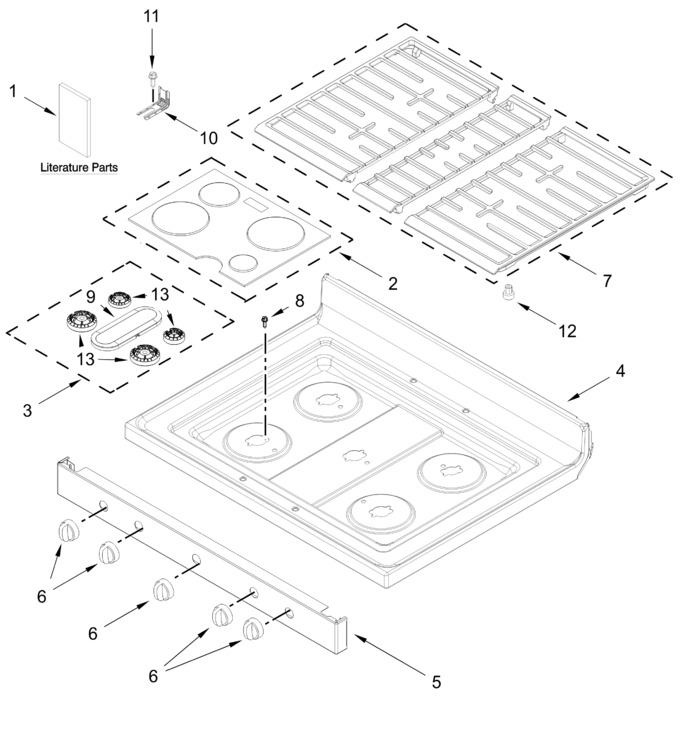

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11605759 | Burner Cap Kit (black) (Replaces: W11498499) |
|
Immediately | $ 67.82 | ||||
| 3 | W11575584 | Burner Kit (Replaces: W11368533) |
|
$ 166.59 | |||||
| 4 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 391.68 | ||||
| 5 | W11165142 | Panel, Manifold (black Stainless) (Replaces: W11044910) |
|
$ 326.64 | |||||
| 6 | W11620736 | Knob (black) (Replaces: W11510460) |
|
$ 43.32 | |||||
| 7 | W11795499 | Grate Kit - 3pc (Replaces: W11690010) |
|
- | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 9 | W11435660 | Spreader, Flame (Replaces: W11367086) |
|
Immediately | $ 88.70 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W10919249 | Bumper, Grate (Replaces: W10465081) |
|
Immediately | $ 11.86 | ||||
| 13 | W11435630 | Spreader, Flame (Replaces: W11352018) |
|
Immediately | $ 73.91 | ||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | ||||||
| W11779182 | Quick Start Guide |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11435657 | Spreader, Flame (Replaces: W11352021) |
|
$ 75.99 | ||||||
| W11435659 | Spreader, Flame (Replaces: W11352020) |
|
$ 76.37 | ||||||
| W11779180 | Owner's Manual |
|
- | ||||||
| W11778915 | Tech Sheet |
|
- | ||||||
| W11795497 | Harness, Main (Replaces: W11773962) |
|
- | ||||||
| W11707251 | Harness, Bake And Broil (Replaces: W11448086) |
|
$ 71.96 | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| 3196896 | Clip, Wire |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- |
