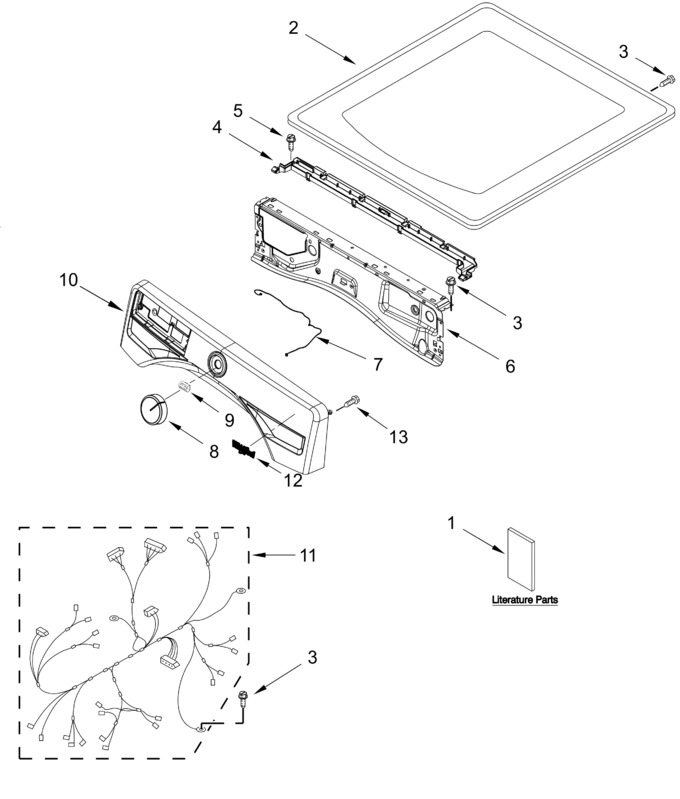

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11315730		Top (black)   (Replaces: W11200177)				$ 227.07
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W11310027		Water Channel   (Replaces: W11255768)				$ 21.37
5	W11686675		Screw   (Replaces: 12990702)				$ 12.84
6	W11480682		Bracket, Console				$ 73.09
7	W11752166		Harness, Acu To Hmi   (Replaces: W11719384)		Appelez-nous	-
8	W11746647		Assembly, Knob   (Replaces: W11709754)				$ 40.74
9	W11788153		Clip, Spring   (Replaces: W11778059)		Appelez-nous	-
10	W11752177		Assembly, Console (black)   (Replaces: W11706714)				$ 546.21
11	W11157863		Harness, Main Wiring				$ 163.69
12	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 78.53
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
	W11685647		Owners Manual		Appelez-nous	-
	W11708031		Tech Sheet		Appelez-nous	-
	W11708006		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
