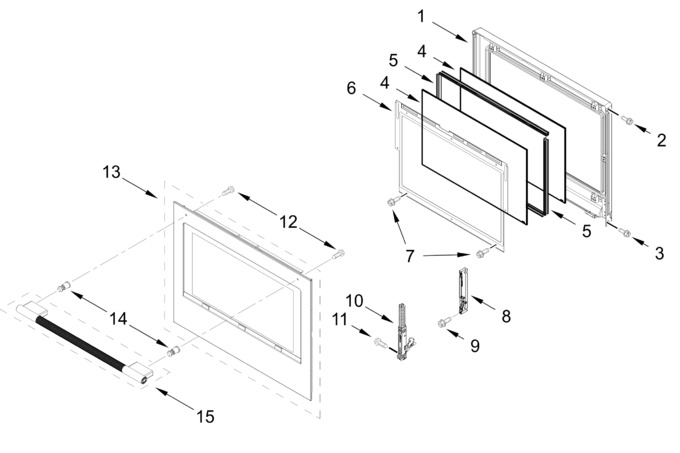

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598186 | Liner Assembly (Replaces: W11302593) |
|
$ 333.90 | |||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 13.29 | |||||
| 4 | WPW10284902 | Glass, Inner (Replaces: W10618123) |
|
$ 206.83 | |||||
| 5 | W11736672 | Spacer, Air Divider (Replaces: W11647161) |
|
Immediately | $ 48.65 | ||||
| 6 | W11598188 | Retainer, Air Divider Glass (Replaces: W11204277) |
|
$ 73.66 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11752201 | Receiver, Hinge (Replaces: W11100732) |
|
$ 41.90 | |||||
| 9 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 8.30 | |||||
| 10 | W11783636 | Hinge, Door (left) (Replaces: W11755835) |
|
$ 118.99 | |||||
| 11 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 12 | W11749091 | Screw (black) (Replaces: W11707001) |
|
$ 11.11 | |||||
| 13 | W11795867 | Door Assembly (stainless) (Replaces: W11686491) |
|
- | |||||
| 14 | W11773159 | Stud (Replaces: W11687274) |
|
$ 26.87 | |||||
| 15 | W11783638 | Handle Assembly (stainless) (Replaces: W11680268) |
|
- | |||||
| W11783637 | Hinge, Door (right) (Replaces: W11755836) |
|
$ 110.30 |
