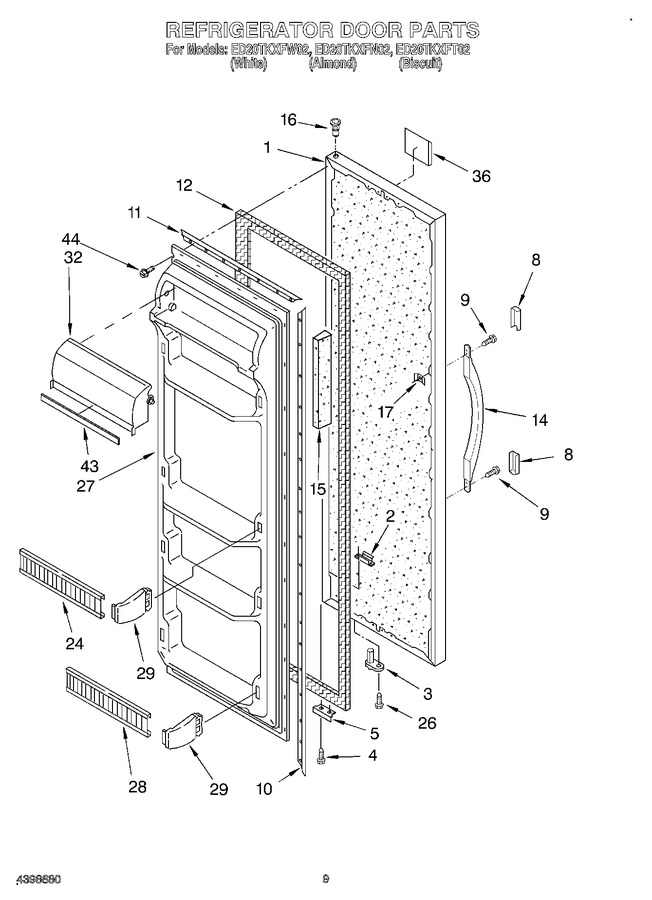

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194612W		Refrigerator Door Panel (white)		Appelez-nous	-
1	2194612N		Refrigerator Door Panel (almond)		Appelez-nous	-
1	2194612T		Refrigerator Door Panel (biscuit (also Order Item 20))		Appelez-nous	-
2	2196135		Tap, Plate				$ 18.96
3	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	2195950		Bracket, Door Stop				$ 5.84
8	2193353T		Endcap, Handle (2) (biscuit)		Appelez-nous	-
8	2193353N		Endcap, Handle (2) (almond)		Appelez-nous	-
8	WP2193353W		Endcap, Handle (2) (white)   (Replaces: 2193353W)				$ 8.52
9	WP489491		Screw   (Replaces: 489491)				$ 7.30
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
14	2186649N		Handle, Center (almond)		Appelez-nous	-
14	2186649T		Handle, Center (biscuit)		Appelez-nous	-
14	2186649W		Handle, Center (white)				$ 70.49
15	2152266		Reinforcement, Shelf		Appelez-nous	-
16	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
17	941242		Screw Anchor		Appelez-nous	-
24	WP2182189		Trim, Door Shelf (2)   (Replaces: 2198487)				$ 100.56
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
27	2196137		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2198488		Trim, Door Shelf (2)		Appelez-nous	-
29	WP2196189		Endcap, Trim (right Side (4))   (Replaces: 2196189)				$ 14.06
29	WP2196190		Endcap, Trim (left Side (4))   (Replaces: 2196190)				$ 14.54
32	2162902		Door, Compartment		Appelez-nous	-
36	2175383		Nameplate (white)		Appelez-nous	-
36	2175384		Nameplate (almond)		Appelez-nous	-
36	2205769		Nameplate (biscuit Model)		Appelez-nous	-
43	2188148		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40
