Diagram # Part Number Description Series Availability Ships Price Add to Cart
87 WR02X36891 Screw St3.9-1.4 Ab Ihxwt20 16 S Appelez-nous -
180 WR01X10605 Scr 6-22 Pl Ihxw 3/8 S Appelez-nous -
181 WR02X11614 Cover Harness Appelez-nous -
182 WR01F01799 Switch Actuator   (Replaces: WR23X10333) Special Order $ 11.44

685 WR02X29370 Screw 8-18 Ab Hxw 1/2 S Appelez-nous -
704 WR01X11061 Scr 8-18 Hi/lo Hwx 3/4 Appelez-nous -
705 WR02X29333 Foam Seal Appelez-nous -
709 WR02X30166 Fresh Food Fan Mounting Gasket Appelez-nous -
716 WR60X35205 Refrigerator Fan Motor Appelez-nous -
719 WR55X11152 Sensor Temperature Appelez-nous -
720 WR17X35670 Air Tower Appelez-nous -
721 WR02X29328 Center Track Screw Cover Appelez-nous -
728 WR87X36486 Refrigerator Evaporator Appelez-nous -
730 WR17X13091 Trough Drain Ff Appelez-nous -
756 WR17X28921 Fresh Food Fan Connector Cover Appelez-nous -
761 WR55X36090 Refrigerator Heater And Harness Appelez-nous -
799 WR17X36487 Refrigerator Evaporator Cover Appelez-nous -
966 WR17X27628 Coiled Cold Water Tank Appelez-nous -
977 WR55X10794 Dispenser Asm Appelez-nous -
1009 WR02X20879 Tube Water Disp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

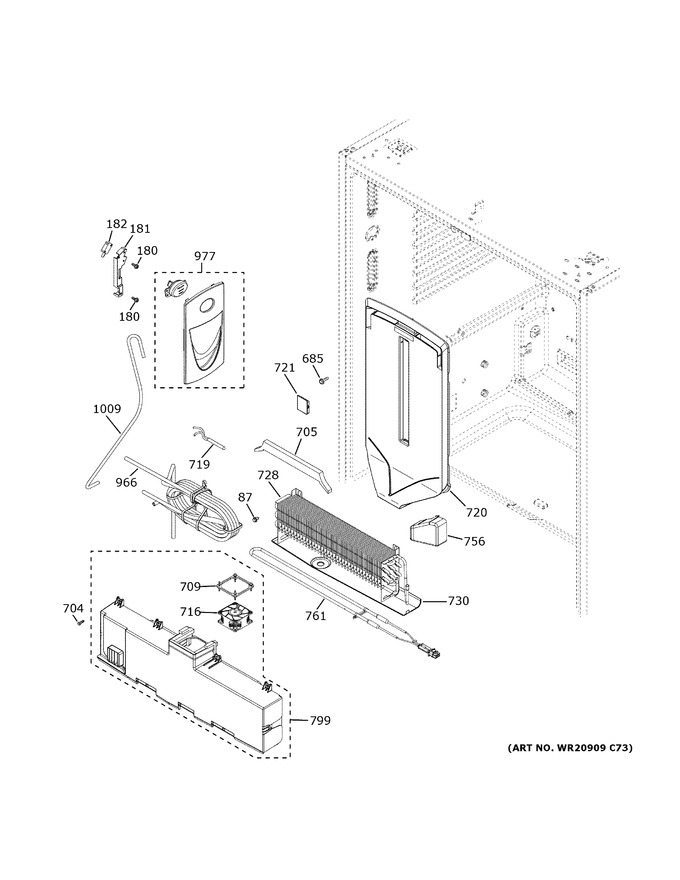

Diagram for CWE23SP2MLS1
