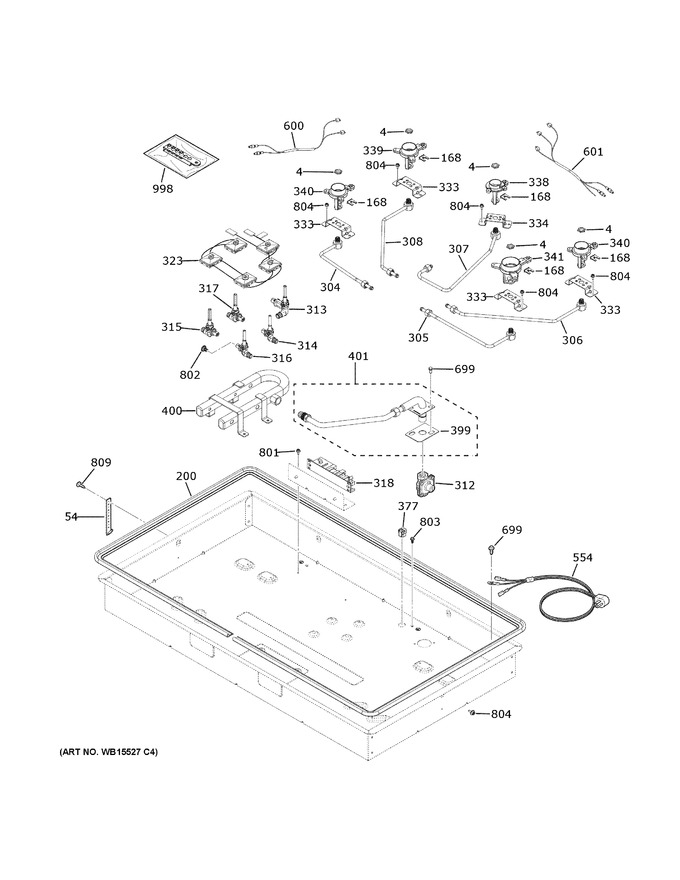

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WS01A01130 | Economic Nut (Replaces: WB01K10037) |
|
Immediately | $ 14.65 | ||||
| 54 | WG02A00689 | Hold Down Bracket (Replaces: WB2K5328) |
|
$ 5.72 | |||||
| 168 | WB02X24976 | Clip, Igniter V2 |
|
- | |||||
| 200 | WB35X31305 | Burner Box Gasket |
|
- | |||||
| 304 | WB28X29285 | Gas Tube Asm Main Lf |
|
- | |||||
| 305 | WB28X29284 | Gas Tube Asm Main Rf |
|
- | |||||
| 306 | WB28X29286 | Gas Tube Asm Main Rr |
|
- | |||||
| 307 | WB28X30163 | Gas Tube Asm Main Ctr |
|
- | |||||
| 308 | WB28X29287 | Gas Tube Asm Main Lr |
|
- | |||||
| 312 | WG02F04818 | Regulator Convert Press (Replaces: WB19T10089) |
|
$ 87.78 | |||||
| 313 | WB21X45192 | Gas Valve |
|
- | |||||
| 314 | WB21X45319 | Valve Gas |
|
- | |||||
| 315 | WB21X45318 | Valve Gas |
|
- | |||||
| 316 | WB21X45320 | Valve Gas |
|
- | |||||
| 317 | WB21X45317 | Valve Gas |
|
- | |||||
| 318 | WB13X49526 | Spark Module |
|
- | |||||
| 323 | WB18X45187 | Harness Switch Assembly |
|
- | |||||
| 333 | WB34X29282 | Mounting Bracket |
|
- | |||||
| 334 | WB34X29283 | Mounting Bracket |
|
- | |||||
| 338 | WB02X24728 | Injet, Small V2 |
|
- | |||||
| 339 | WB02X24726 | Injet, Large V2 |
|
- | |||||
| 340 | WB02X24727 | Injet, Medium V2 |
|
- | |||||
| 341 | WB02X24725 | Injet, Xl V2 |
|
- | |||||
| 377 | WB2K5275 | Strain Relief-rt Angle |
|
- | |||||
| 399 | WB35X30709 | Manifold Seal |
|
- | |||||
| 400 | WB28X45189 | Manifold Tube Assembly |
|
- | |||||
| 401 | WB28X30708 | Inlet Tube Asm Kit |
|
- | |||||
| 554 | WB18X25912 | Range Cord |
|
- | |||||
| 600 | WB13X49529 | Igniters And Harness |
|
- | |||||
| 601 | WB13X29294 | Igniters And Harness Asm Rt |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 801 | WB1K5028 | Screw |
|
- | |||||
| 802 | WB01K10067 | Scr 8 Hd 1/4 - 20 |
|
- | |||||
| 803 | WS02X10087 | Scr 10-32 Gx Hxw 7/16 S |
|
- | |||||
| 804 | WZ04X0044 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 998 | WB28X29862 | Ng High Altitude Conversion Kit |
|
- | |||||
| 998 | WB28X29964 | Lp Conversion Kit |
|
- | |||||
| 998 | WB28X29861 | Lp High Altitude Conversion Kit |
|
- |
