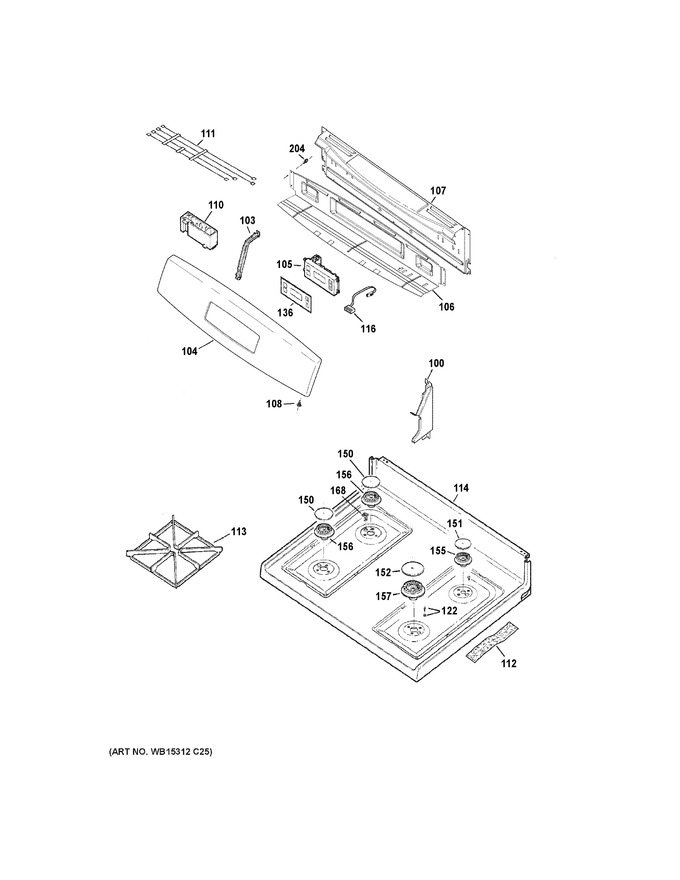

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	WB07X20197		End Support Lt		Appelez-nous	-
100	WB07X20194		End Support Rt		Appelez-nous	-
103	WB02K10150		Bracket Control		Appelez-nous	-
104	WB36X26256		Trim Control		Appelez-nous	-
105	WB27X44728		Control Oven To9 (gas)		Appelez-nous	-
106	WB34X26858		Cover Back Upper		Appelez-nous	-
107	WB34K10129		Cover Back Lower		Appelez-nous	-
108	WS01A01408		Screw (blk)   (Replaces: WB1X5716)				$ 4.20
110	WB13X24323		Ignition Module		Appelez-nous	-
111	WB18X26607		Electrodes & Harness H.v.		Appelez-nous	-
112	WB35K10005		Foil Cooktop		Appelez-nous	-
113	WB31X20643		Grate Asm Hairpin Hv		Appelez-nous	-
114	WB62X31581		Black Range Top		Appelez-nous	-
116	WB18X32406		Harness Control		Appelez-nous	-
122	WB01X24735		Ckt Screw		Appelez-nous	-
136	WB07X34957		Overlay T09		Appelez-nous	-
150	WS01F02536		Asm Burner Cap (9500)   (Replaces: WB29K10023)			Immediately	$ 15.72
151	WB16X28654		Asm. Cap, Burner Small V2				$ 28.45
152	WS01F03894		Asm Burner Cap (12000)   (Replaces: WB29K10024)			Immediately	$ 21.44
155	WB16X24721		Burner, Small V2		Appelez-nous	-
156	WB16X24724		Burner, Medium V2		Appelez-nous	-
157	WB16X24723		Burner, Large V2		Appelez-nous	-
168	WB02X24976		Clip, Igniter V2		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 14.29
