Cabinet Parts


Cabinet Trim Parts


Dispenser Parts


Freezer Door Parts


Freezer Liner And Air Flow Parts


Freezer Shelf Parts


Icemaker And Ice Container Parts


Lower Unit And Tube Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

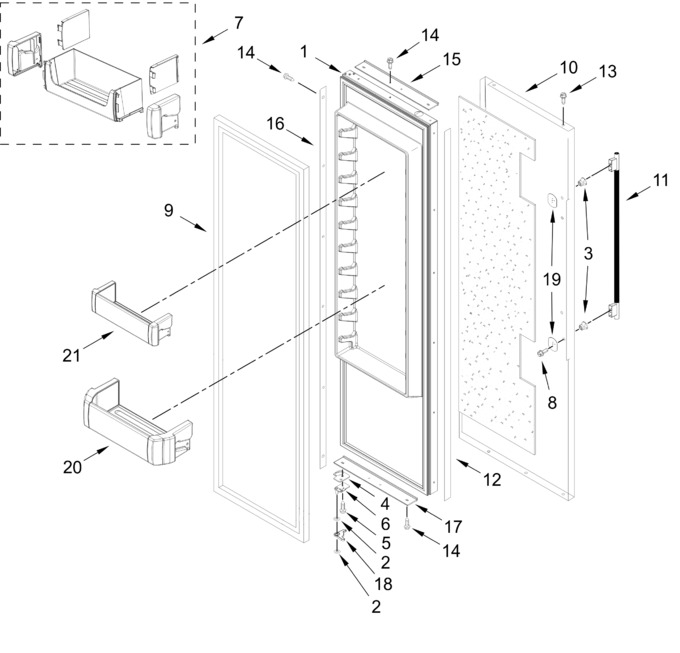

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633394		Door, Refrigerator   (Replaces: W11576687)			Immediately	$ 1,532.53
2	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
3	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 8.87
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 130.37
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2302878		Hinge Assembly, Bottom			Immediately	$ 91.01
7	W11627396		Bin Assembly, Top Door   (Replaces: W11610618)				$ 185.14
8	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
9	W11625077		Gasket, Door (grey)   (Replaces: W10760886)				$ 385.91
10	W11819000		Skin, Rc Door (stainless)   (Replaces: W11737550)				$ 612.39
11	W11784350		Handle, Door (stainless)   (Replaces: W11737006)			Immediately	$ 271.05
12	W10758113		Spacer, Handle Side Door		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
15	W10761897		Spacer, Door Skin (top)		Appelez-nous	-
16	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
17	W10761937		Spacer, Door Skin (bottom)		Appelez-nous	-
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
19	W10127710		Plate, Handle Door			Immediately	$ 25.94
20	W11627397		Bin, Gallon Door   (Replaces: W11408930)				$ 185.59
21	W11627398		Bin, Shallow Door   (Replaces: W11408938)				$ 184.01
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
