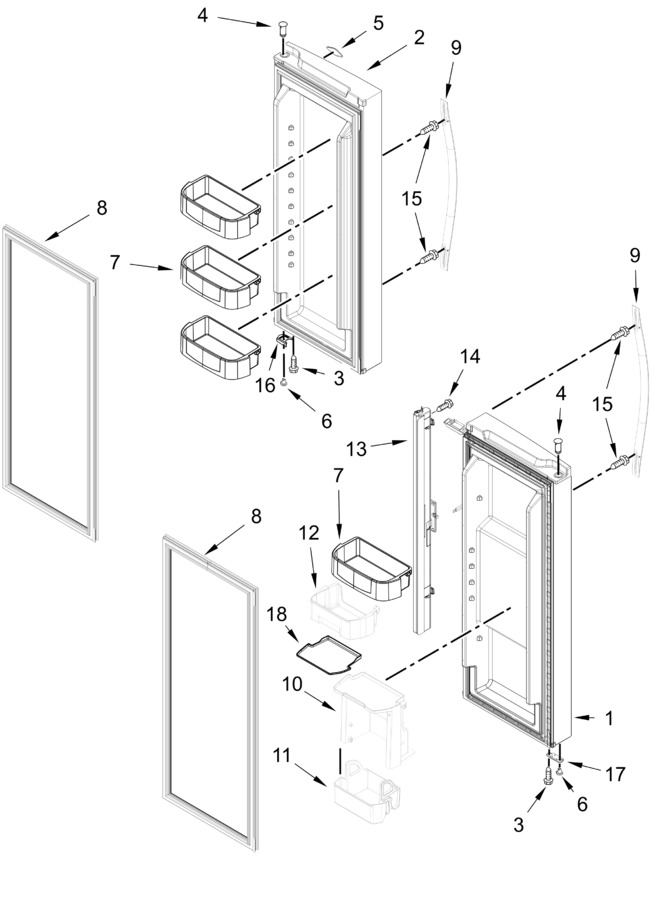

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10865734 | Door Assembly (black Stainless, Right Hand, Includes Door Gasket) (Replaces: W10865734) |
|
$ 1,014.44 | |||||
| 2 | LW10865738 | Door Assembly (black Stainless, Right Hand, Includes Door Gasket) (Replaces: W10865738) |
|
Immediately | $ 1,012.80 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 5 | W10876598 | Nameplate (grey) (Replaces: W10765861) |
|
Immediately | $ 65.54 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.80 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 69.93 | ||||
| 8 | W10460610 | Gasket, Door (black) (Replaces: W10413465) |
|
$ 251.58 | |||||
| 9 | W11483532 | Handle, Door (stainless) (Replaces: W11339138) |
|
Immediately | $ 160.21 | ||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 93.42 | |||||
| 11 | WPW10411219 | Bin, Fresh & Ready (Replaces: W10411219) |
|
Immediately | $ 86.35 | ||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 58.31 | ||||
| 13 | W11692845 | Assembly, Flipper Mullion (black) (Replaces: W10624448) |
|
$ 217.49 | |||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 15 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 33.25 | ||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | WPW10317192 | Bin, Door Mat (Replaces: W10317192) |
|
$ 78.59 |
