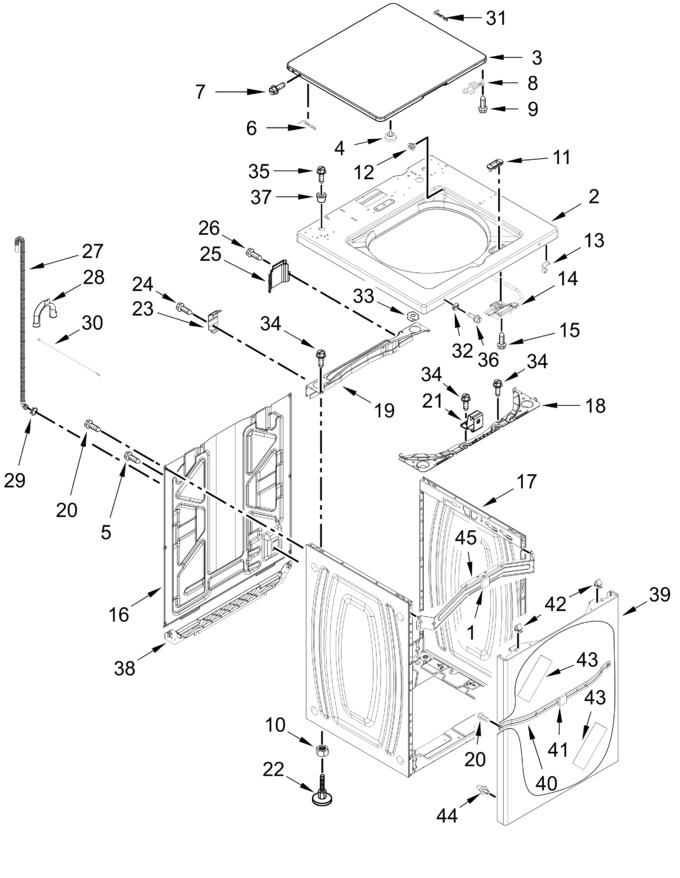

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Basket And Tub Parts
Controls And Water Inlet Parts
Gearcase, Motor And Pump Parts
Meter Case Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10161707 | Top, Foam Seal |
|
- | |||||
| 2 | W10852766 | Top (white) |
|
- | |||||
| 3 | WPW10338625 | Assembly, Lid And Bumper (white) (Replaces: W10251302) |
|
Immediately | $ 349.27 | ||||
| 4 | W11252488 | Bumper, Lid (Replaces: W11241723) |
|
$ 6.20 | |||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 6 | WP91770 | Hinge, Lid (left) (Replaces: 91770) |
|
$ 25.94 | |||||
| 7 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 6.80 | ||||
| 8 | WPW10240513 | Strike, Lid Lock (white) (Replaces: W10240513) |
|
Immediately | $ 35.61 | ||||
| 9 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.80 | ||||
| 10 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 6.80 | ||||
| 11 | WPW10392041 | Bezel, Lid Lock (white) (Replaces: W10392041) |
|
Immediately | $ 7.20 | ||||
| 12 | WP21258 | Bearing, Lid Hinge (Replaces: 21258) |
|
$ 7.21 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 14 | WPW10482836 | Latch, Lid Lock Assembly (Replaces: W10482836) |
|
Immediately | $ 167.23 | ||||
| 15 | W11679611 | Screw (Replaces: W10588613) |
|
$ 6.17 | |||||
| 16 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 294.95 | ||||
| 17 | W10845574 | Cabinet (white) |
|
$ 636.62 | |||||
| 18 | W11661767 | Channel, Top Front (Replaces: W11634044) |
|
- | |||||
| 19 | W11712680 | Channel, Top Rear (Replaces: W11089573) |
|
$ 93.49 | |||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 21 | W10461182 | Lock, Top |
|
$ 12.03 | |||||
| 22 | W10862938 | Foot, Leveling (Replaces: W10245373) |
|
Immediately | $ 11.90 | ||||
| 23 | W10461176 | Hinge, Top |
|
$ 15.70 | |||||
| 24 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.26 | |||||
| 25 | W10461180 | Cover, Harness |
|
- | |||||
| 26 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 27 | W11551765 | Hose, Drain (external) (Replaces: W11392677) |
|
Immediately | $ 22.74 | ||||
| 28 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 29 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 30 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 31 | WP54583 | Hinge, Lid (right) (Replaces: 54583) |
|
$ 27.94 | |||||
| 32 | W10461181 | Bushing-top, Screw |
|
$ 16.94 | |||||
| 33 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.18 | |||||
| 34 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 35 | 3353994 | Bolt |
|
- | |||||
| 36 | W11170603 | Screw (Replaces: W10486616) |
|
- | |||||
| 37 | 356674 | Cone, Wedge |
|
$ 33.19 | |||||
| 38 | W11610868 | Bracket, Base |
|
$ 52.25 | |||||
| 39 | W11704945 | Panel, Front (white) (Replaces: W11552072) |
|
$ 320.74 | |||||
| 40 | W10866521 | Bracket, Front Panel |
|
$ 40.24 | |||||
| 41 | WP8283273 | Damper, Brace (Replaces: 8283273) |
|
$ 25.56 | |||||
| 42 | W11376161 | Lock, Top Front (Replaces: W10862638) |
|
Immediately | $ 6.94 | ||||
| 43 | W11096159 | Damper, Sound |
|
$ 25.86 | |||||
| 44 | W11590580 | Rivet (Replaces: W10866523) |
|
$ 8.90 | |||||
| 45 | W11129581 | Bracket, Front Top |
|
$ 37.89 |
