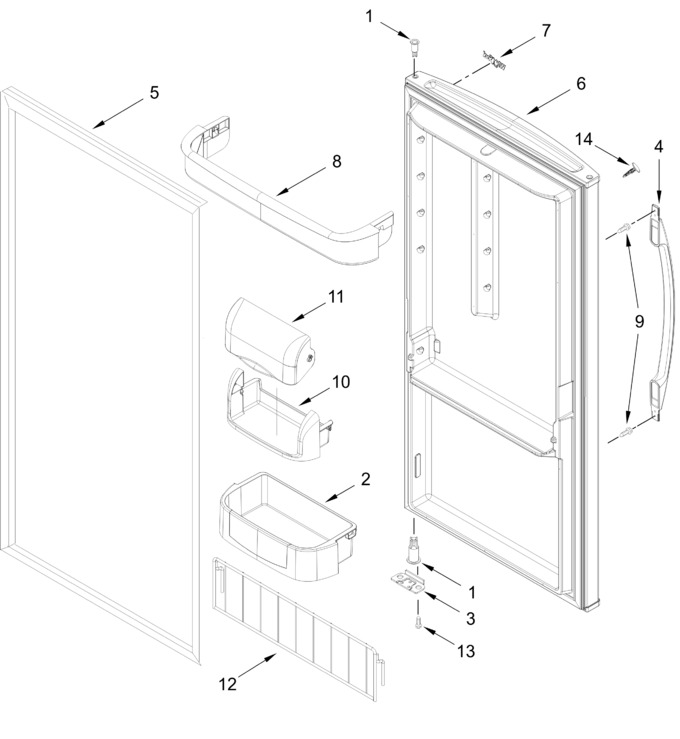

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 2 | 67001141 | Bucket, Small (Replaces: 12557202) |
|
Immediately | $ 71.02 | ||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 23.69 | |||||
| 4 | W10858385 | Handle, Door (white) (Replaces: W10612702) |
|
$ 224.16 | |||||
| 5 | W10856583 | Gasket, Door (white) (Replaces: W10574474) |
|
Immediately | $ 288.41 | ||||
| 6 | W10869751 | Door Assembly (white) (Replaces: W10854780) |
|
$ 1,061.66 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 8 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 94.31 | ||||
| 9 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 10 | WP67001279 | Tray, Dairy (Replaces: 12369502) |
|
Immediately | $ 79.21 | ||||
| 11 | W10612074 | Lid |
|
$ 106.00 | |||||
| 12 | W10574673 | Shelf, Door (pizza) |
|
$ 217.03 | |||||
| 13 | 7101P35660 | Screw |
|
- | |||||
| 14 | W10830984 | Hole Plug, Handle (white) (Replaces: W10663736) |
|
$ 7.54 | |||||
| WP67001021 | Bucket, Medium (Replaces: 12557204) |
|
$ 76.46 |
