Cabinet Parts
Freezer Door Parts
Freezer Liner And Icemaker Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

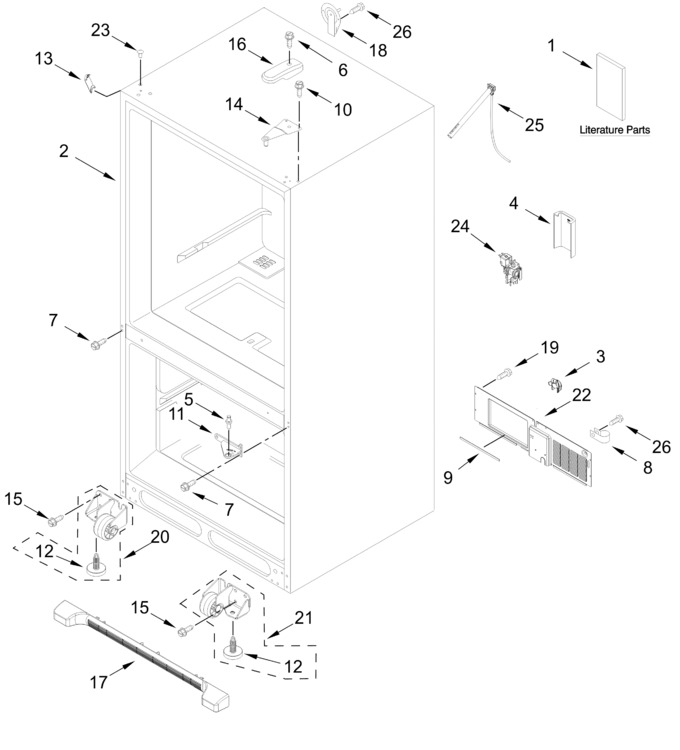

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARI2948F547D7C4C1B6CA0878B04EDFC4EF | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10485986 | Guide, Waterline |
|
Immediately | $ 11.66 | ||||
| 4 | W10208592 | Cover, Valve |
|
- | |||||
| 5 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.90 | |||||
| 6 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 7 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 13.25 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 9 | B5759655 | Gasket (Replaces: W11534846) |
|
$ 11.73 | |||||
| 10 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 11 | W11689473 | Hinge, Center (Replaces: W11610756) |
|
$ 62.81 | |||||
| 12 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 13 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 14 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 15 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 16 | 67001012 | Cover, Top Hinge (black) (Replaces: 12477601B) |
|
$ 44.74 | |||||
| 17 | WPW10534167 | Grille Assembly (black, Includes Clips) (Replaces: W10534167) |
|
$ 84.82 | |||||
| 18 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 19 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 20 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 21 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 22 | W10210978 | Cover, Unit |
|
$ 181.60 | |||||
| 23 | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 7.34 | ||||
| 24 | W11519244 | Valve, Inlet (Replaces: W11446817) |
|
$ 80.75 | |||||
| 25 | W11817981 | Tube Assembly, Fill (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 82.14 | ||||
| 26 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| W11479841 | Owner's Manual |
|
- | ||||||
| W11644245 | Energy Guide |
|
- | ||||||
| W11312474 | Tech Sheet |
|
- |
