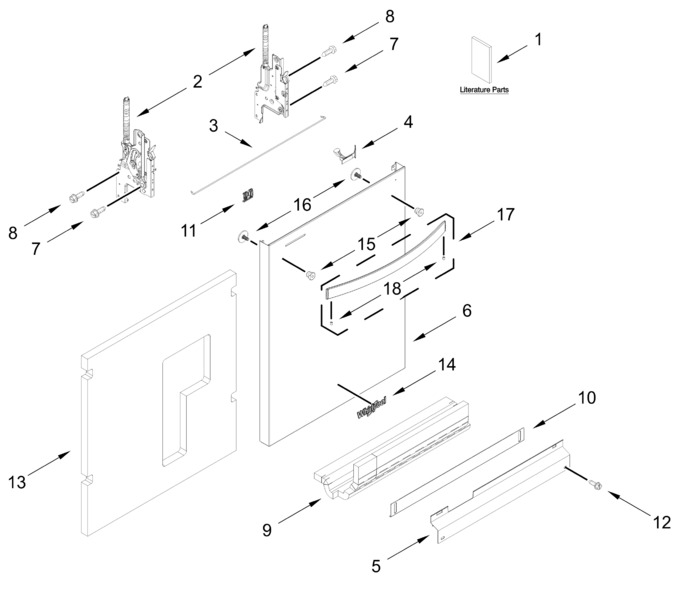

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11766666 | Arm, Hinge (left) (Replaces: W11721083) |
|
Immediately | $ 53.24 | ||||
| 3 | W11377160 | Cross Brace, Door |
|
$ 30.02 | |||||
| 4 | W11102920 | Light Pipe |
|
$ 61.35 | |||||
| 5 | W11110746 | Access Panel (white) |
|
$ 116.96 | |||||
| 6 | W11462450 | Front Panel (white, Includes Badge, Barrel Nut And Light Pipe) (Replaces: W11340870) |
|
Immediately | $ 354.87 | ||||
| 7 | W11676450 | Screw (Replaces: 3400000) |
|
$ 13.28 | |||||
| 8 | WPW10309090 | Screw (Replaces: W11364953) |
|
Immediately | $ 69.17 | ||||
| 9 | W11573704 | Insulation, Single Layer (Replaces: W11038694) |
|
Immediately | $ 26.98 | ||||
| 10 | W11467726 | Toe Panel (white) |
|
$ 32.19 | |||||
| 11 | W10692757 | Barrel Nut, Front Panel |
|
$ 14.41 | |||||
| 12 | W11632695 | Screw (white) (Replaces: W11438977) |
|
Immediately | $ 13.26 | ||||
| 13 | W11778318 | Insulation, Front Panel (Replaces: W10919861) |
|
$ 21.47 | |||||
| 14 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 15 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 7.98 | ||||
| 16 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 17 | W11757259 | Handle (white) (Replaces: W11554911) |
|
$ 83.90 | |||||
| 18 | W10907991 | Screw, Set (Replaces: W10693137) |
|
$ 6.80 | |||||
| W11756687 | Tech Sheet |
|
- | ||||||
| W11650524 | Energy Guide |
|
- | ||||||
| W11766665 | Arm, Hinge (right) (Replaces: W11721082) |
|
Immediately | $ 53.24 | |||||
| W11323304 | Owners Manual |
|
- |
