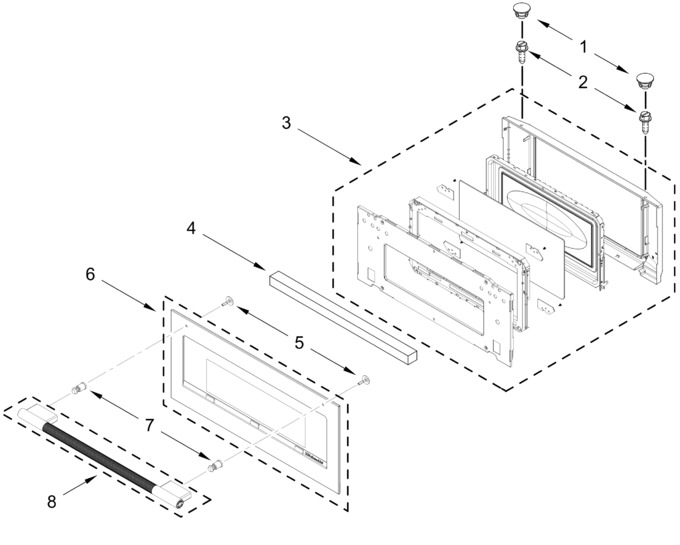

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 11.11 | |||||
| 2 | 7101P33860 | Screw |
|
- | |||||
| 3 | W11639552 | Inner Door Assembly |
|
$ 535.73 | |||||
| 4 | W10359769 | Foam, Door Handle |
|
$ 13.28 | |||||
| 5 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 13.28 | ||||
| 6 | W11795872 | Mwo Outer Door Assembly (stainless) (Replaces: W11686706) |
|
- | |||||
| 7 | W11773159 | Stud (Replaces: W11687274) |
|
$ 26.87 | |||||
| 8 | W11783638 | Handle Assembly (stainless) (Replaces: W11680268) |
|
- |
